Cisco IEM-3300-16T Expansion Module
$2,445.00

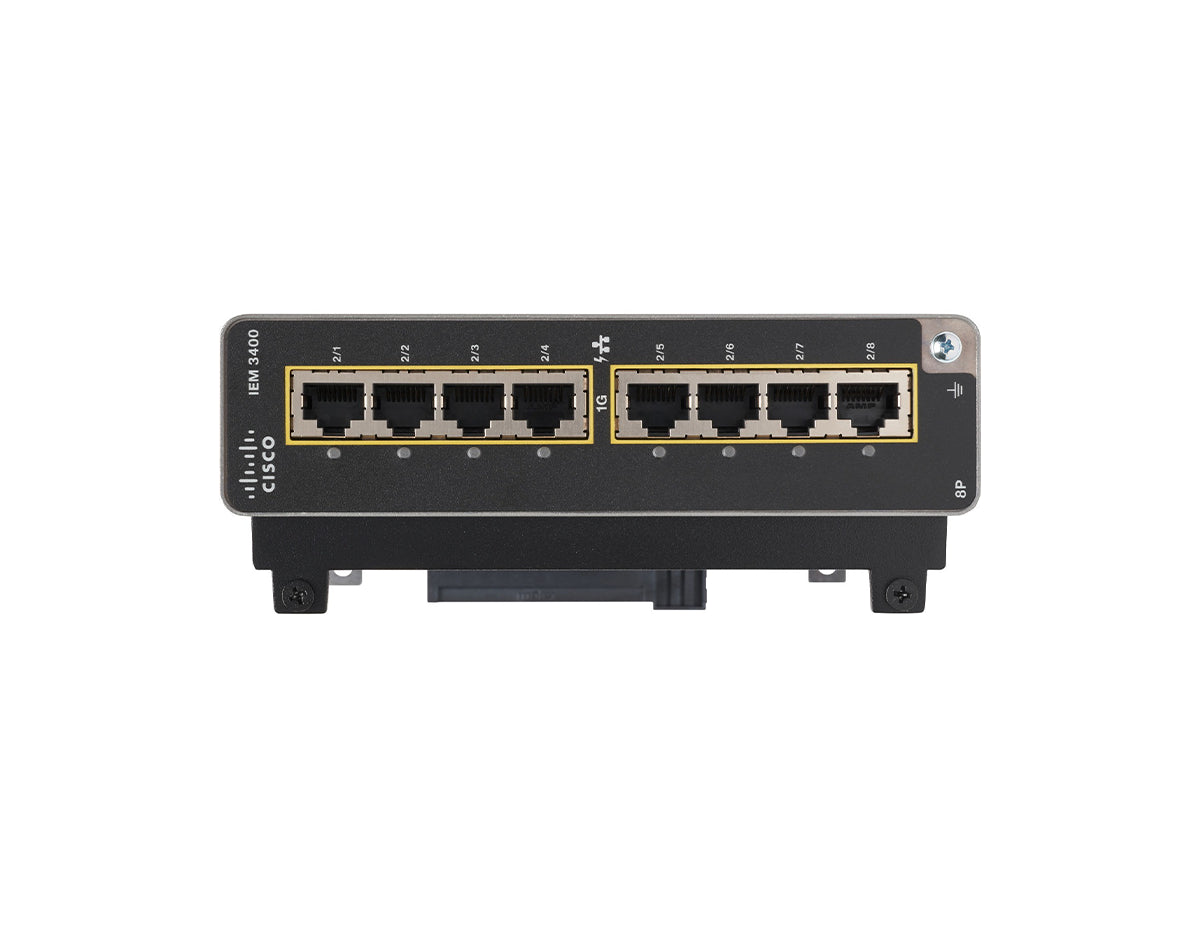

Cisco IEM-3400-8P Expansion Module
Expansion module 8 x Gigabit Ethernet (PoE+) for Catalyst IE3400 Rugged Series
| PoE ports | 8 |
|---|
$2,775.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
The expansion modules of the Cisco Catalyst IE3400 Rugged Series are built for use in harsh industrial environments, such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. These modules are fanless, designed for convection-cooling, and hardened to withstand vibration, shock, surge, and electrical noise immunity. With the Cisco IEM-3400-8P=, switches can provide a total PoE budget of 480W.
| Product Family | Industrial Ethernet 3400 |
|---|---|
| Product Type | Expansion Module |
| Total ports on expansion module | 8 |
| PoE/PoE+ | 8 |
| Total system ports (including expansion module) | 18 |
| Power Consumption | 20W |
| Rated MTBF (hours) | 1,802,010 |
| Dimensions (HxWxD) Inches | 6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5cm |
|---|---|
| Weight | 2.0 lbs (0.9 Kg) |
| Mounting | DIN Rail |
| Industrial Automation Control System | IEC 62443-4-1 IEC 62443-4-2 |
| Marine I | DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Corrosion | IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas) |
The expansion modules of the Cisco Catalyst IE3400 Rugged Series are built for use in harsh industrial environments, such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. These modules are fanless, designed for convection-cooling, and hardened to withstand vibration, shock, surge, and electrical noise immunity. With the Cisco IEM-3400-8P=, switches can provide a total PoE budget of 480W.
Key Features
- 8 GE Copper ports
- Cisco IOS XE, a next-gen operating system
- User-Friendly GUI (WebUI)
The tabs contain the Cisco IEM-3400-8P= datasheet with all the specifics you need.
