HPE Aruba Networking JL256A 2930F 48G PoE+ 4SFP+ Switch
$2,095.00
HPE Aruba Networking JL809A Instant On 1960 48G PoE Switch
Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (2 x SFP+, 2 x 10GBASE-T), PoE+ (600W), Layer 2+
| Switching capacity | 176 Gbps |
|---|
$2,119.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The HPE Aruba Instant On 1960 48G PoE Switch (JL809A) delivers reliable, high-speed networking for small and growing businesses. With 48 Gigabit Ethernet ports, including 40 PoE+ and 8 PoE++ ports, and a robust 600W PoE budget, this switch powers a wide range of devices, including access points, security cameras, and VoIP phones. The switch includes 2 dedicated 10GbE SFP+ ports and 2 10GBase-T ports for high-speed uplinks, reducing network bottlenecks and improving performance. Easy-to-use cloud-based management makes setup and monitoring simple, providing flexibility for remote network administration.
| Product Family | Aruba Instant On 1960 Switch Series |
|---|---|
| Product Type | Switch |
| Dimensions | 402.75(d) x 442.5(w) x 43.95(h) mm |
| Weight | 10.8 lb (4.9 kg) |
| CPU | Single-Core ARM v7 Cortex-A9 @800MHz |
| 100 Mb Latency | < 4.4 uSec |
| 1000 Mb Latency | < 2.2 uSec |
| 10000 Mb Latency | < 1.1 uSec |
| Throughput (Mpps) | 131 Mpps |
| Capacity | 176 Gbps |
| Routing Table size (# of static entries) | 32 IPv4/IPv6 |
| MAC Address table size (# of entries) | 16,000 entries |
| Reliability MTBF (years) | 68.0 |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/Storage temperature | 40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-127VAC / 200-240VAC |
|---|---|
| Current | 7.9A/0.5A |
| Maximum power rating | 100-127V: 790W 200-220V: 760W |
| Idle power | 100-127V: 60W 200-220V: 100W |
| PoEpower | Total 600W PoE Power (Upto 480 W of Class 6 or 600 W of Class 4 PoE) |
| Power Supply | Internal power supply |
| Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 |
| ESD | EN/IEC 61000-4-2 |
| Radiated | EN/IEC 61000-4-3 |
| EFT/Burst | EN/IEC 61000-4-4 |
| Surge | EN/IEC 61000-4-5 |
| Conducted | EN/IEC 61000-4-6 |
| Power frequency magnetic field | EN/IEC 61000-4-8 |
| Voltage dips and interruptions | EN/IEC 61000-4-11 |
| Harmonics | EN/IEC 61000-3-2 |
| Flicker | EN /IEC 61000-3-3 |
| Device Management | HPE Networking Instant On Cloud; web browser; SNMP manager |
| IETF Standard SNMP Traps Supported | RFC 1157 • RFC 1493 • RFC 1215 • RFC 3416 • RFC 3418 |
- Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (2 x SFP+, 2 x 10GBASE-T), PoE+ (600W), Layer 2+.

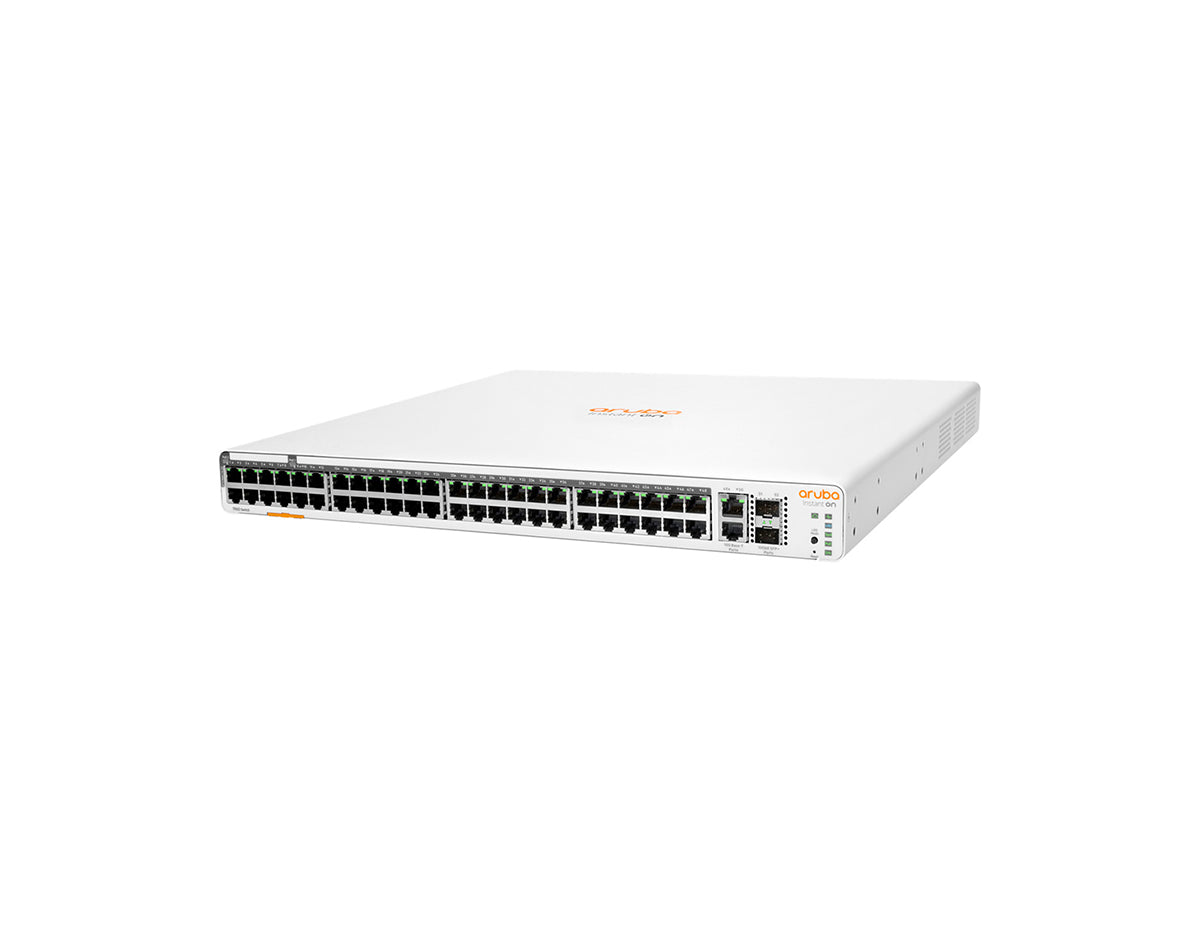

HPE Aruba Instant On 1960 48G PoE Switch (JL809A)
The HPE Aruba Instant On 1960 48G PoE Switch (JL809A) delivers reliable, high-speed networking for small and growing businesses. With 48 Gigabit Ethernet ports, including 40 PoE+ and 8 PoE++ ports, and a robust 600W PoE budget, this switch powers a wide range of devices, including access points, security cameras, and VoIP phones. The switch includes 2 dedicated 10GbE SFP+ ports and 2 10GBase-T ports for high-speed uplinks, reducing network bottlenecks and improving performance. Easy-to-use cloud-based management makes setup and monitoring simple, providing flexibility for remote network administration.
Key Features
- 48 x 1GbE PoE Ports: Provides up to 30W (Class 4) and 60W (Class 6) of power per port, enabling smooth connectivity for PoE-enabled devices.
- 2 x 10G SFP+ Uplink Ports & 2 x 10GBase-T Ports: Delivers high-speed uplinks to ensure efficient data flow across the network.
- 600W PoE Power Budget: Powers various PoE-enabled devices, supporting business growth with scalability.
- Cloud-Based Management: Manage the switch from anywhere using the Aruba Instant On mobile app or cloud-based portal.
- Stacking Capability: Supports stacking for up to four switches, simplifying management and improving network scalability.
Technical Overview
- Recommended for: Small businesses, retail, and education sectors.
- Ports: 48 x 1GbE ports (40 PoE+ and 8 PoE++), 2 x SFP+ uplink ports, 2 x 10GBase-T ports.
- Switching Capacity: 176 Gbps
- Forwarding Rate: 131 Mpps
- PoE Power Budget: 600W for powering PoE devices
- Management: Managed via Aruba Instant On mobile app or cloud-based GUI.
- Security: Includes ACLs, 802.1X authentication, and DoS protection.
