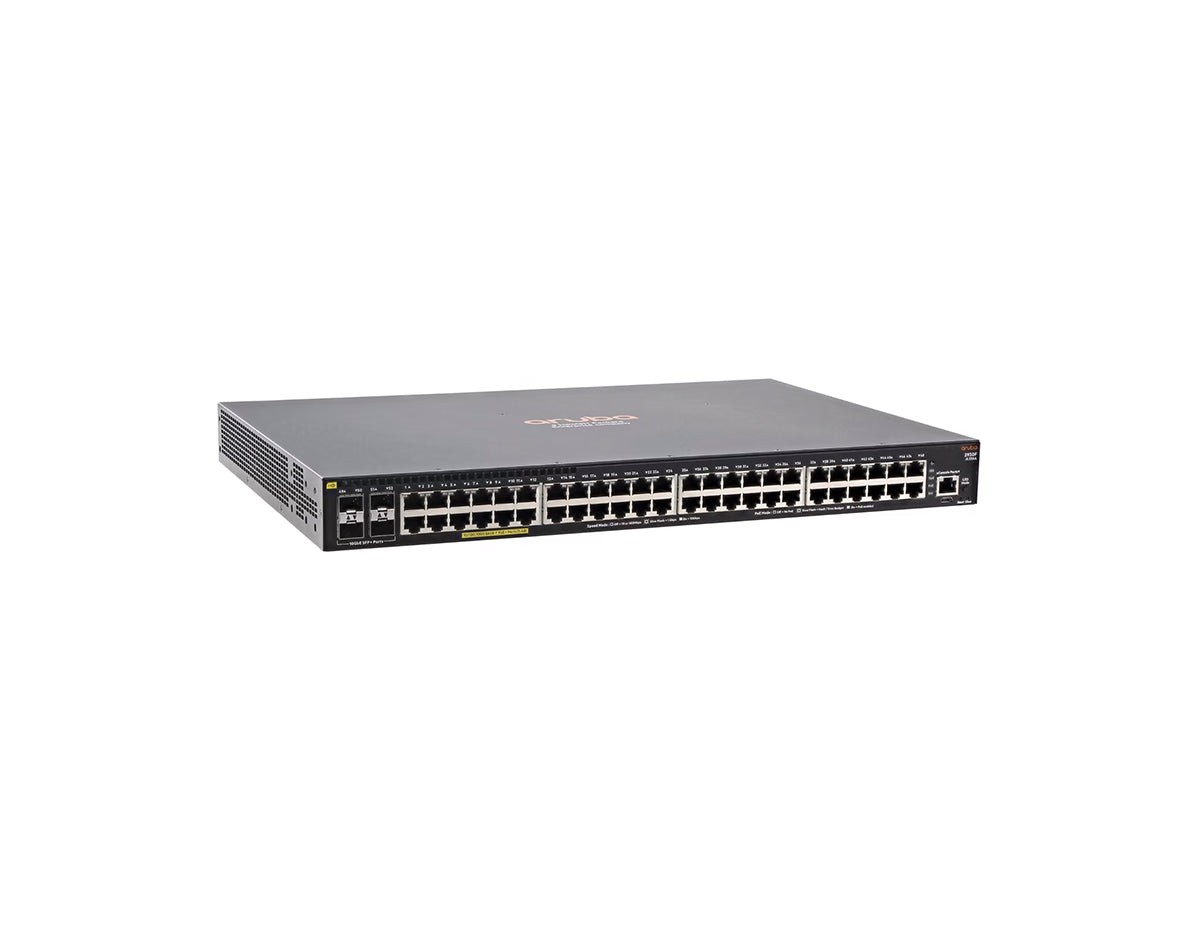

HPE Aruba Networking JL256A 2930F 48G PoE+ 4SFP+ Switch

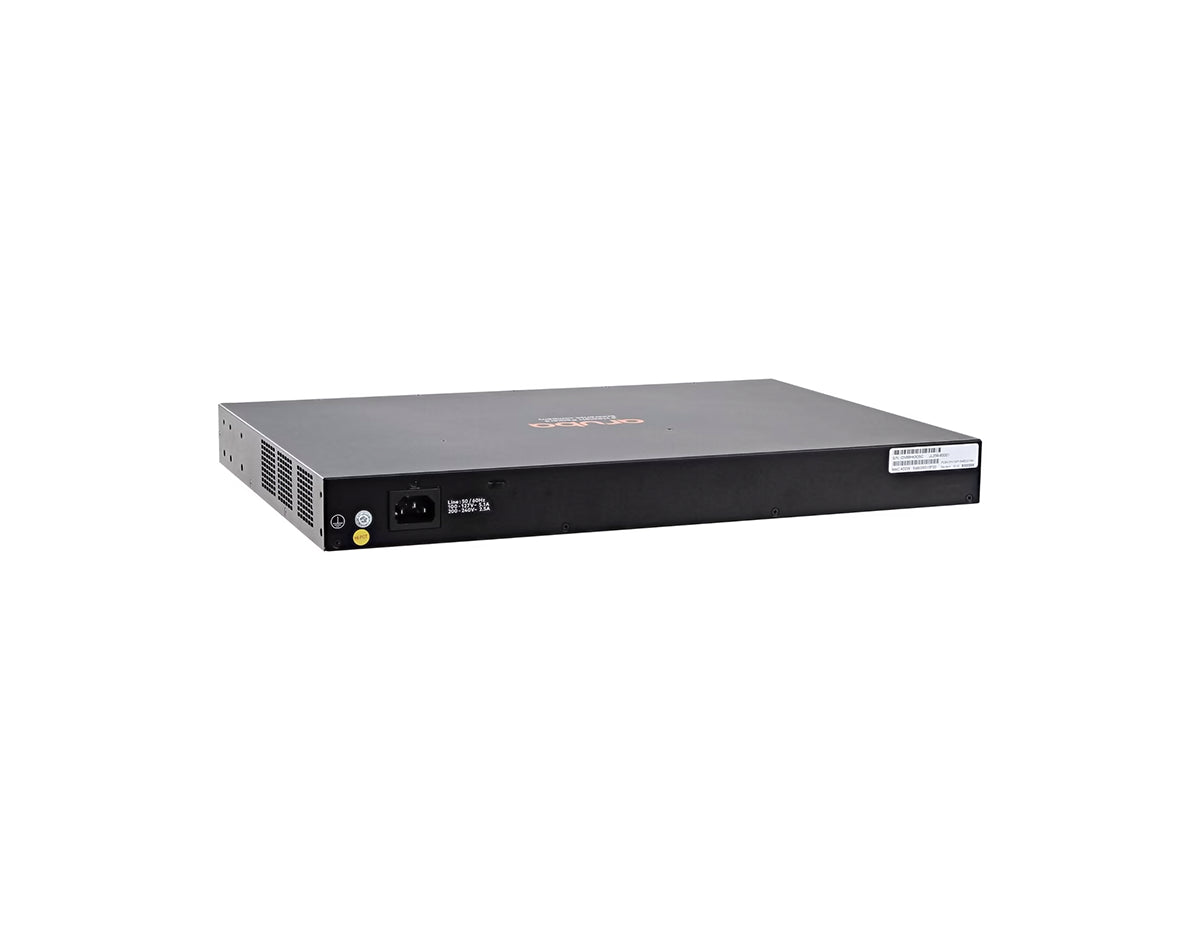

HPE Aruba Networking JL256A 2930F 48G PoE+ 4SFP+ Switch — photo 2
HPE Aruba Networking JL256A 2930F 48G PoE+ 4SFP+ Switch — photo 3

HPE Aruba SKU JL256A

HPE Aruba Networking JL256A 2930F 48G PoE+ 4SFP+ Switch

Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 3

Switching capacity176 Gbps

$2,095.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A) is a high-performance, scalable switch designed to deliver reliable power and network connectivity for enterprise and SMB environments. With 48 Gigabit PoE+ ports, this switch provides both power and data connectivity to devices such as IP phones, cameras, and wireless access points. The 4 SFP+ uplink ports support 10 Gigabit fiber connectivity, ensuring network scalability and redundancy. The Aruba 2930F series offers advanced Layer 2 and Layer 3 features, including traffic management, routing, and security, making it ideal for campus, branch, and SMB networks.

Product Family2930F Series
Product TypeEthernet Switch
Additional ports and slots1 dual-personality (RJ-45 or USB micro-B) serial console port
Frequency50/60 Hz
Voltage100 – 127 / 200 – 240 VAC, rated
Current5.1/2.5 A
Maximum heat dissipation293.0 BTU/hr (309.1 kJ/hr)
Maximum power rating459 W
Idle power48.6 W
PoE power370 W PoE+
Dimensions17.42(w) x 11.98(d) x 1.73(h) in (44.25 x 30.42 x 4.39 cm) (1U height)
Weight9.83 lb (4.46 kg)
Power efficiency certifications80plus.org certification: Silver
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress, 4 GB eMMC
1000 Mb Latency< 3.8 µs (64-byte packets)
10 Gbps Latency< 1.6 µs (64-byte packets)
Throughputup to 112.0 Mpps
Switching capacity176 Gbps
Routing table size2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
MAC address table size32,768 entries
Operating temperature32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet
Operating relative humidity15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity15% to 95% @ 149°F (65°C), noncondensing
Airflow directionSide-to-side
AcousticPower: 55.7 dB, Pressure: 41.7 dB
EmissionsEN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
Software-defined networksSupports REST APIs to enable automation of network operations, monitoring, and troubleshooting
Layer 3 servicesDHCP server centralizes and reduces the cost of IPv4 address management
J9054DAruba 100M SFP LC FX 2km MMF XCVR
J9054DCMAruba CM 100M SFP LC FX 2km MMF XCVR
J4858DAruba 1G SFP LC SX 500m MMF XCVR
J4858DCMAruba CM 1G SFP LC SX 500m MMF XCVR
J4859DAruba 1G SFP LC LX 10km SMF XCVR
J4859DCMAruba CM 1G SFP LC LX 10km SMF XCVR
J4860DAruba 1G SFP LC LH 70km SMF XCVR
J4860DCMAruba CM 1G SFP LC LH 70km SMF XCVR
J8177DAruba 1G SFP RJ45 T 100m Cat5e XCVR
J8177DCMAruba CM 1G SFP RJ45 T 100m Cat5e XCVR
J9150DAruba 10G SFP+ LC SR 300m MMF XCVR
J9150DCMAruba CM 10G SFP+ LC SR 300m MMF XCVR
J9151EAruba 10G SFP+ LC LR 10km SMF XCVR
J9151ECMAruba CM 10G SFP+ LC LR 10km SMF XCVR
J9153DAruba 10G SFP+ LC ER 40km SMF XCVR
J9281DAruba 10G SFP+ to SFP+ 1m DAC Cable
J9283DAruba 10G SFP+ to SFP+ 3m DAC Cable
JL448AAruba X2C2 RJ45 to DB9 Console Cable
J9583AHPE X410 1U Universal 4-post Rack Mounting Kit
J9583BAruba X414 1U Universal 4-post Rack Mounting Kit
JL311AAruba 2930F 8-port Cable Guard
JL311ACMAruba CM 2930F 8-port Cable Guard
JL312AAruba 2930F 8-port Power Shelf
JL312ACMAruba CM 2930F 8-port Power Shelf
Q9Y73AAEAruba Central Switch 6200/29xx Foundation 1-year Subscription E-STU
Q9Y74AAEAruba Central Switch 6200/29xx Foundation 3-year Subscription E-STU
Q9Y75AAEAruba Central Switch 6200/29xx Foundation 5-year Subscription E-STU
Q9Y76AAEAruba Central Switch 6200/29xx Foundation 7-year Subscription E-STU
Q9Y77AAEAruba Central Switch 6200/29xx Foundation 10-year Subscription E-STU
Q9Y68AAEAruba Central 25xx/6100/8 to 12 port Switch Foundation 1 year Subscription E-STU
Q9Y69AAEAruba Central 25xx/6100/8 to 12 port Switch Foundation 3-year Subscription E-STU
Q9Y70AAEAruba Central 25xx/6100/8 to 12 port Switch Foundation 5-year Subscription E-STU
Q9Y71AAEAruba Central 25xx/6100/8 to 12 port Switch Foundation 7-year Subscription E-STU
Q9Y72AAEAruba Central 25xx/6100/8 to 12 port Switch Foundation 10-year Subscription E-STU
R6U78AAEAruba Central On-Premises 62xx or 29xx Switch Foundation 1-year Subscription E-STU
R6U79AAEAruba Central On-Premises 62xx or 29xx Switch Foundation 3-year Subscription E-STU
R6U80AAEAruba Central On-Premises 62xx or 29xx Switch Foundation 5-year Subscription E-STU
R6U81AAEAruba Central On-Premises 62xx or 29xx Switch Foundation 7-year Subscription E-STU
R6U82AAEAruba Central On-Premises 62xx or 29xx Switch Foundation 10-year Subscription E-STU
R6U73AAEAruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 1 year Subscription E-STU
R6U74AAEAruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 3-year Subscription E-STU
R6U75AAEAruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 5-year Subscription E-STU
R6U76AAEAruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 7-year Subscription E-STU
R6U77AAEAruba Central On-Premises 25xx/6100/8 to 12 port Switch Foundation 10-year Subscription E-STU

HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A)

The HPE Aruba 2930F 48G PoE+ 4SFP+ Switch (JL256A) is a high-performance, scalable switch designed to deliver reliable power and network connectivity for enterprise and SMB environments. With 48 Gigabit PoE+ ports, this switch provides both power and data connectivity to devices such as IP phones, cameras, and wireless access points. The 4 SFP+ uplink ports support 10 Gigabit fiber connectivity, ensuring network scalability and redundancy. The Aruba 2930F series offers advanced Layer 2 and Layer 3 features, including traffic management, routing, and security, making it ideal for campus, branch, and SMB networks.

Key Features

  • 48 x Gigabit PoE+ Ports: Provides power and high-speed connectivity to PoE-enabled devices, simplifying the need for separate power supplies.
  • 4 x SFP+ Uplink Ports: Supports 10 Gigabit fiber uplinks for high-speed network expansion and redundancy.
  • Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, static routing, and security features, providing optimized traffic management and secure network operations.
  • Energy-Efficient Design: Supports Energy Efficient Ethernet (EEE) and PoE+ power management to reduce energy consumption.
  • Simple Management: Managed via Aruba Central, CLI, SNMP, or web-based GUI, allowing for easy control and monitoring of the network.

Technical Overview

  • Recommended for: Enterprise and SMB networks requiring PoE+ support and high-speed fiber uplinks for scalable deployment.
  • Ports: 48 x Gigabit PoE+ ports, 4 x SFP+ uplink ports for 10 Gigabit fiber connectivity.
  • Power: PoE+ budget of up to 740W to power connected devices
  • Management: Managed via Aruba Central, CLI, SNMP, and web-based GUI for comprehensive network control.
  • Form Factor: Rack-mountable design for efficient deployment in space-constrained environments.
