Mikrotik MTAS-5G-19D120 Antenna
Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors , Product Name MikroTik MTAS-5G-19D120 Antenna Product Description Dual-polarization 5 GHz 19 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors.
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors
,
| Product Name | MikroTik MTAS-5G-19D120 Antenna |
| Product Description | Dual-polarization 5 GHz 19 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors. |
| Compatibility | BaseBox, NetBox, NetMetal, and other outdoor wireless devices. |
| Frequency Range | 5.17 – 5.825 GHz |
| Gain | 19 dBi |
| Polarization | Vertical and horizontal |
| Beamwidth (Azimuth) | 120° |
| Beamwidth (Elevation) | 5° |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >30 dB |
| Port-to-Port Isolation | >40 dB |
| VSWR | 1.43 (typical), 1.8 (maximum) |

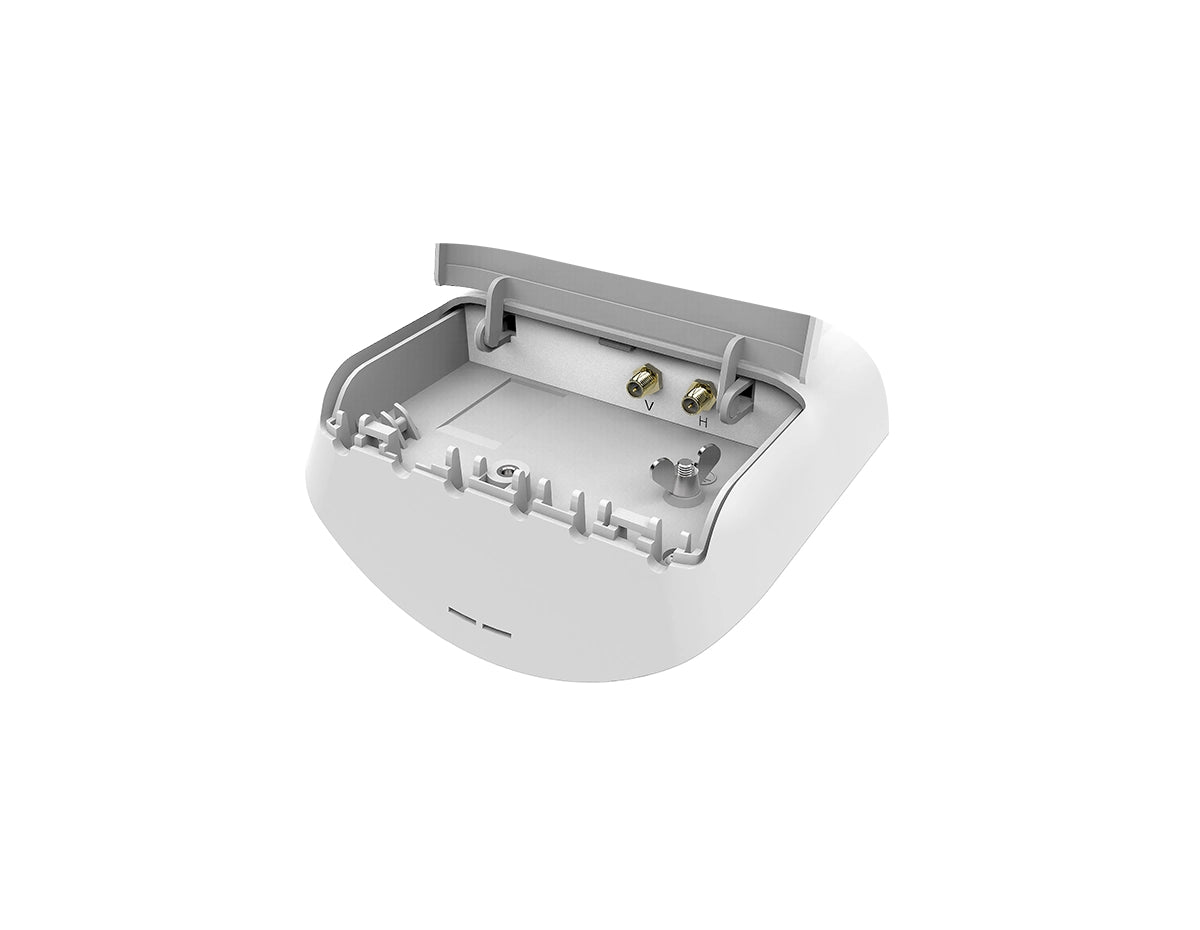

| Connector Type | 2 x RP-SMA |

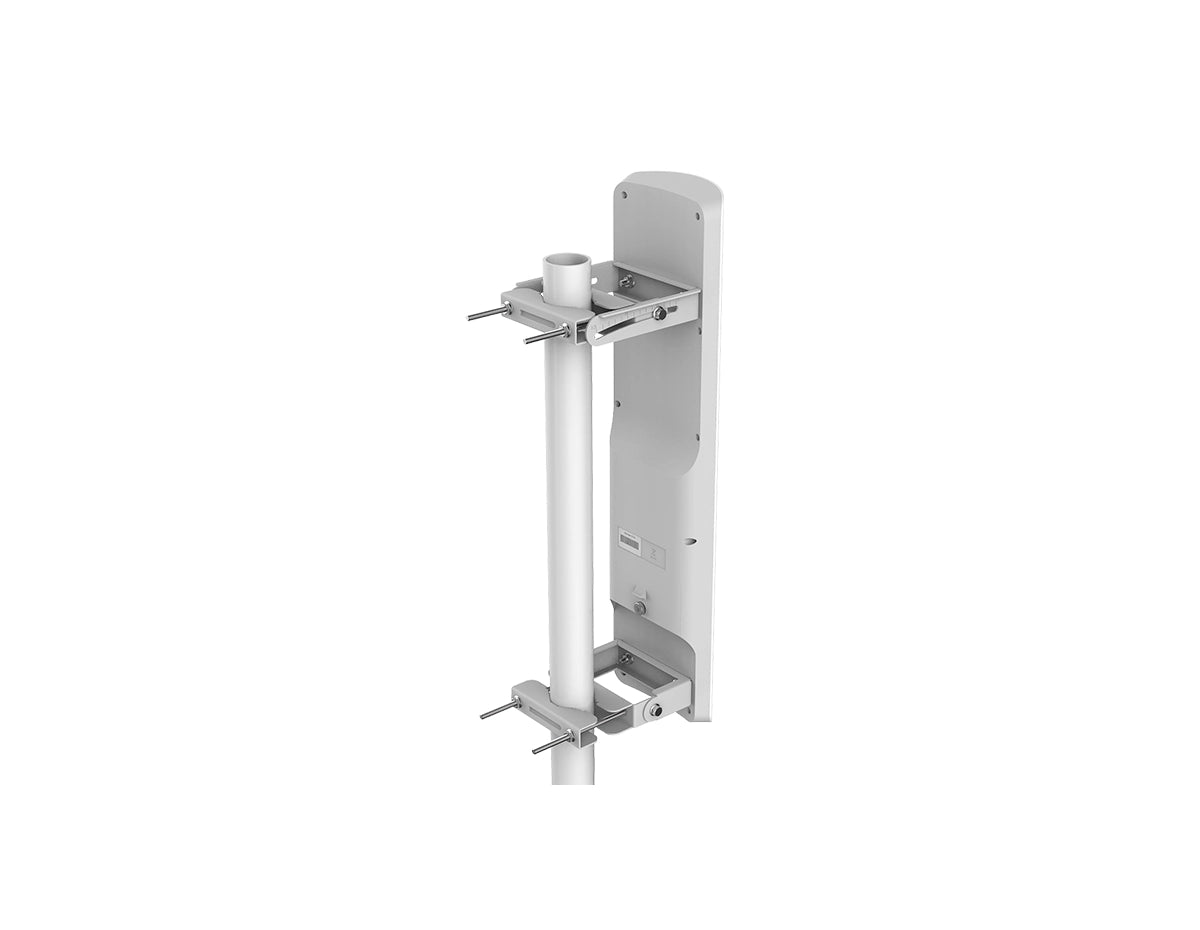

| Mounting | Metallic U-bolt type mounts |
| Dimensions (W x H x D) | 152 x 598 x 78 mm |
| Weight | 1,270 g |
| Operating Temperature Range | -40°C to 70°C |
| Product Code | MTAS-5G-19D120 |
| Antenna Type | Sector |
| Frequency Range | 5.17 – 5.825 GHz |
| Gain | 19 dBi |
| Polarization | Dual (vertical and horizontal) |
| 3 dB Beamwidth (Azimuth) | 120° |
| 3 dB Beamwidth (Elevation) | 5° |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >30 dB |
| Port-to-Port Isolation | >40 dB |
| VSWR | 1.43 (typical), 1.8 (maximum) |
| Connector Type | 2 x RP-SMA |
| Mounting | Metallic U-bolt type mounts |
| Dimensions (W x H x D) | 152 x 598 x 78 mm |
| Weight | 1,270 g |
| Operating Temperature Range | -40°C to 70°C |
The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal, or any other outdoor wireless device.
The mANT is a dual-polarization 19dBi 120-degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts
| Weight | 10.0 lbs |
|---|---|
| Power | |
| Frequency | |
| Brand |
