MikroTik SXTR&EP06-A SXT LTE6 kit-US 9 dBi 60 degrees LTE Antenna
Access Point Antenna MikroTik SXTR&EP06-A SXT LTE6 kit-US 9 dBi 60 degrees LTE Antenna
Price
1-Year Manufacturer Warranty
Free Shipping on Orders Over $500
Secure Payment
- Access Point Antenna MikroTik SXTR&EP06-A SXT LTE6 kit-US 9 dBi 60 degrees LTE Antenna
| Properties | SXTR&EP06-A |
| Description | Mikrotik SXT LTE6 kit-US with with 9dBi 60 degrees LTE directional antenna, 650MHz CPU, 64MB RAM, 2xLAN (one with PoE-OUT), LTE CAT6 modem for USA bands 2/4/5/7/12/13/25/26/29/30/66, Dual-SIM, RouterO |
| Product Type | Access Point Antenna |
| Specifications | SXTR&EP06-A |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $169.00 |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 21 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 400 mA |
| Max total out (A) | 600 mA |
| Total output current | 600mA |
| Mobile | |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 2 (1900MHz) / 5 (850MHz) / 4 (1700MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL | 2×2 |
| LTE FDD bands | 2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 7 (2600MHz) / 12 (700MHz) / 13 (700 MHz) / 25 (1900MHz) / 26 (850MHz) / 30 (2300 MHz) / 66 (1700MHz) / 29 (700 MHz) |
| TAC | 1611100 |
| Ethernet | |
| 10/100 Ethernet ports | 2 |
| Peripherals | |
| Number of SIM slots | 2 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Other | |
| Mode button | Yes |

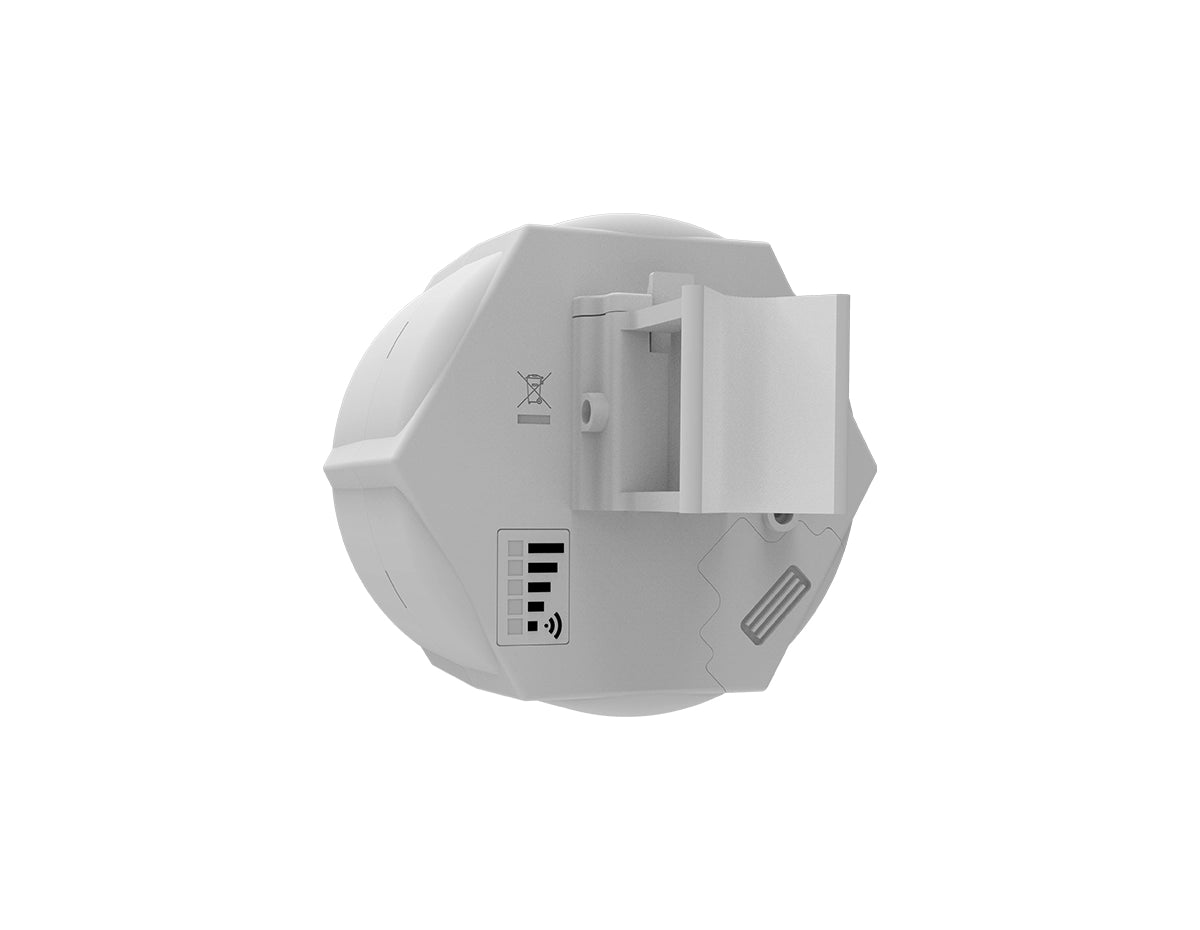

MikroTik SXTR&EP06-A Access Point Antenna
The SXTR&EP06-A kit is designed for deployment in remote areas with cellular coverage. It is housed in a durable and weatherproof housing, and the device features two Micro-SIM slots for redundancy, offering increased flexibility in mobile network coverage. Furthermore, the LTE Category 6 modem supports carrier aggregation, enabling the SXT to exploit multiple LTE bands concurrently, which is particularly advantageous in densely populated mobile user environments. Additionally, the device has two Ethernet ports and PoE functionality, with PoE-in on Ether1 and PoE-out on Ether2.
Quick Specs:
- 2x 10/100 Ethernet Ports
- PoE-out: Passive PoE up to 57V
- PoE-out ports: Ether2
- QCA9531, 1 core, 650 MHz CPU
Please see the related tabs for the SXTR&EP06-A datasheet and compatible accessories.
