HPE Aruba Networking JL818A 4100i 24-Port Gigabit PoE Switch with 4 SFP+ Uplinks
Managed, Rack-mountable, 24 x 1G ports, Fixed Uplinks (4 x SFP+), PoE+ (240W), Layer 2
| Switching capacity | Up to 128 Gbps |
|---|
$3,899.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The HPE Aruba Networking 4100i 24-port Switch (JL818A) is built to meet the networking needs of industrial environments. This rugged switch supports 20 Class 4 PoE ports and 4 Class 6 PoE ports, providing the power necessary for a wide range of IoT devices and industrial equipment. Additionally, it includes 4 SFP+ uplink ports for high-speed 1/10GbE connectivity. Its fanless design, along with support for extreme temperatures and rugged conditions, makes it ideal for outdoor deployments, smart cities, and industrial automation.
| Product Name | JL818A |
|---|---|
| Switch Type | Managed Layer 2+ industrial access switch |
| Total Ports | 20 x 100M/1G Base-T Class 4 PoE, 4 x 100M/1G Base-T Class 6 PoE, 4 x 1G/10G SFP |
| PoE Budget | 240W (no de-rating) |
| Uplink Ports | 4 x 1G/10G SFP |
| Management | Cloud-based and local management through Aruba Central and Web GUI |
| Operating Temperature | 40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
| Storage Temperature | 40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | H:44 mm x W:444.5 mm x D:304.4 mm (H:1.73” x W:17.5” x D:12.0”) |
| Weight | 6.47 kg (14.26 lbs) |
| Power Supply | Fixed internal power supply (300W) |
| Cooling | Internal fans with automatic speed adjustment |
| Usage | Optimized for enterprise, healthcare, and industrial environments |
| Durability | Tested to IP30 rating for dust resistance, suitable for industrial and harsh environments |
| Switching Capacity | Up to 128 Gbps |
| Forwarding Rate | Up to 95 Mpps |
|---|---|
| Latency | 1 Gbps: 1.585 μSec , 10 Gbps: 1.243 μSec Average Latency (LIFO-64-bytes packets) |
| Certifications | CE, FCC, UL, RoHS, EN 60950-1 compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), low-halogen materials |
| EMC Compliance | Meets EN 55032, EN 55024, CISPR 32, and FCC Part 15 Class A standards |
| MTBF | 1,200,000 hours at 25°C |
| Power Efficiency | 80 PLUS Gold certification for internal power supply |
| Vibration Resistance | Tested to operate under 1.0 Grms (5-500 Hz) according to IEC 60068-2-6 |
| Shock Resistance | Tested to withstand 30 G for 11 ms under IEC 60068-2-27 |
| Redundancy | No stacking; fixed internal PSU (no PSU redundancy) |
| Power Consumption | Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W |
| Firmware Updates | Supports automatic and manual updates via Aruba Central |
| Network Security | 802.1X, MAC authentication, and VLAN-based security |
| Deployment | Designed for high-density installations with extended PoE capabilities |
| Reliability | Tested for continuous operation under industrial temperature and dust conditions |
| Advanced Features | Supports QoS, VLAN, Layer 3 routing, and dynamic segmentation |
- Managed, Rack-mountable, 24 x 1G ports, Fixed Uplinks (4 x SFP+), PoE+ (240W), Layer 2.

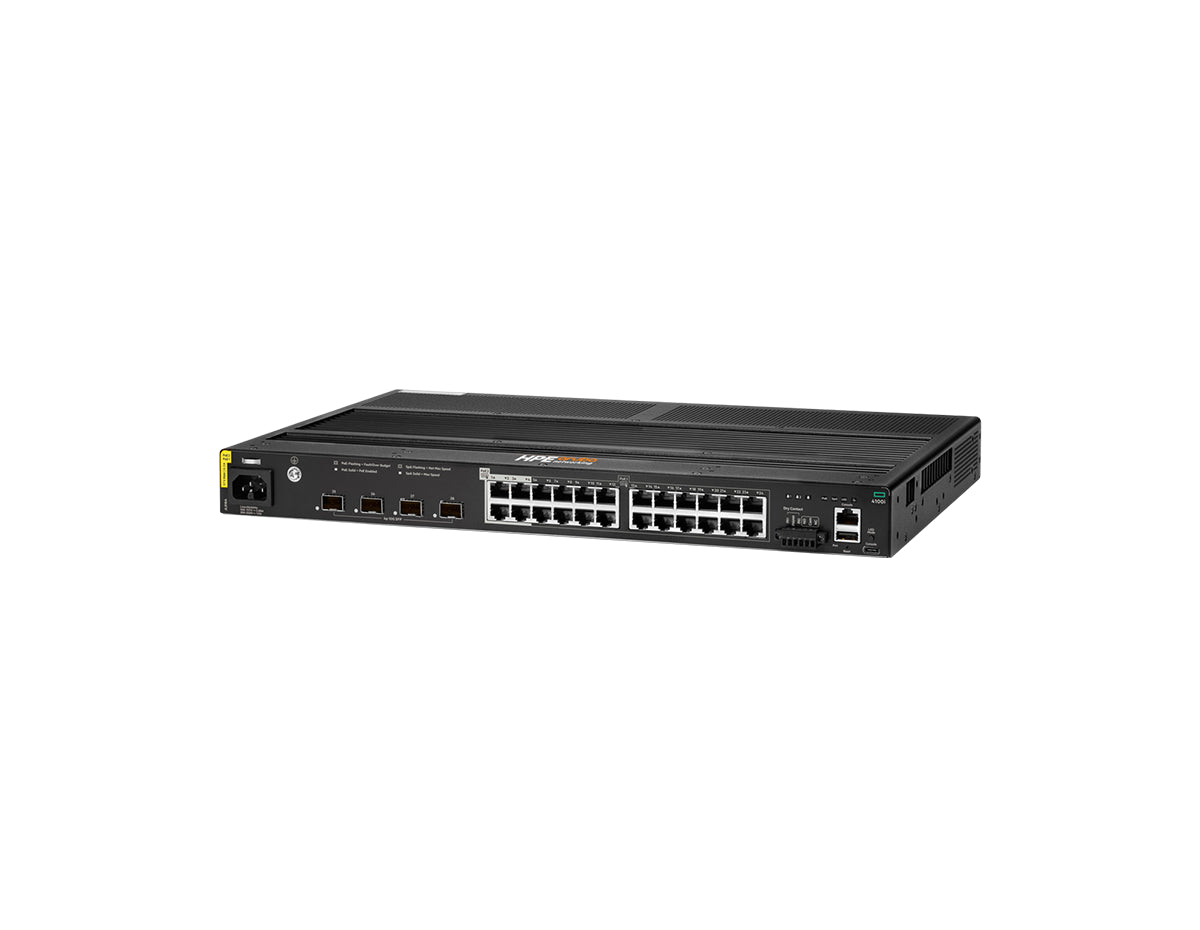

HPE Aruba Networking 4100i 24p 1GbE 20p Class4 PoE and 4p Class6 PoE 4p SFP+ Switch (JL818A)
The HPE Aruba Networking 4100i 24-port Switch (JL818A) is built to meet the networking needs of industrial environments. This rugged switch supports 20 Class 4 PoE ports and 4 Class 6 PoE ports, providing the power necessary for a wide range of IoT devices and industrial equipment. Additionally, it includes 4 SFP+ uplink ports for high-speed 1/10GbE connectivity. Its fanless design, along with support for extreme temperatures and rugged conditions, makes it ideal for outdoor deployments, smart cities, and industrial automation.
Key Features
- 20 x 1GbE Class 4 PoE Ports: Provides up to 30W per port, powering a variety of PoE-enabled devices such as access points and IP phones.
- 4 x 1GbE Class 6 PoE Ports: Delivers up to 60W per port, ideal for powering high-demand devices like PTZ cameras and digital signage.
- 4 x SFP+ Uplink Ports: Supports high-speed 1/10GbE fiber uplinks for enhanced network scalability.
- Ruggedized Design: Designed for industrial environments, this switch can operate in extreme temperatures ranging from -40°C to +70°C.
- High Availability: Provides always-on PoE, ensuring devices remain powered even during scheduled reboots and firmware upgrades.
Technical Overview
- Recommended for: Industrial IoT environments, smart cities, and outdoor networks.
- Ports: 20 x 1GbE Class 4 PoE, 4 x 1GbE Class 6 PoE, 4 x SFP+ uplinks.
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95 Mpps
- PoE Power Budget: Supports up to 360W of PoE power
- Management: Managed via Aruba Central, Web GUI, CLI, and REST APIs.
- Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.
