Name: Ubiquiti US-48 Switch
SKU: US-48-NEW
Price: 895 USD
Availability: InStock

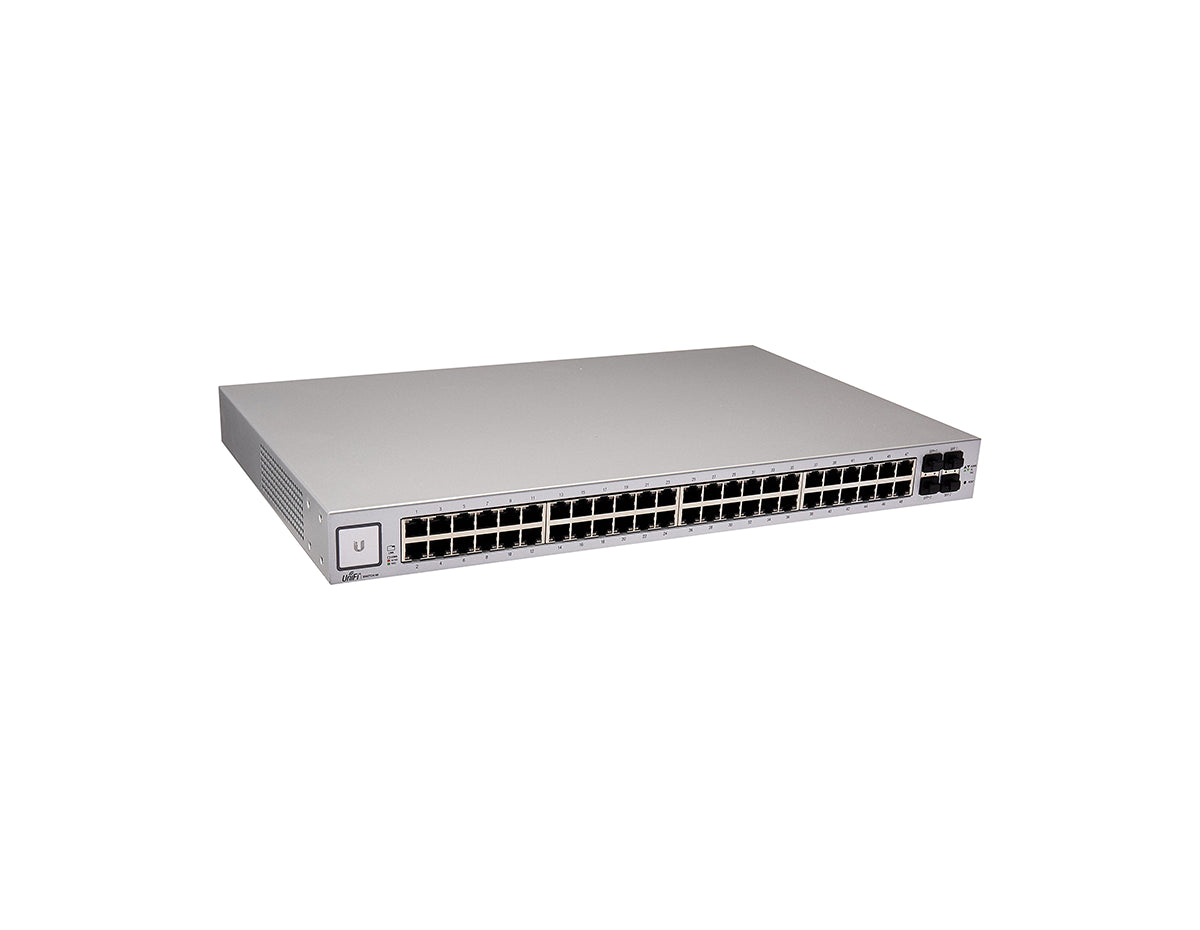

Ubiquiti US-48 Switch

48, Switch, managed, 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP, rack-mountable

Categories: Networking, SwitchesSKU: US-48-NEW

Price

$895.00

1-Year Manufacturer Warranty

Free Shipping on Orders Over $500

Secure Payment

Description
Additional information

48, Switch, managed, 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x Gigabit SFP, rack-mountable

Properties	Ubiquiti US-48 Switch (US-48)
Description	Non-Blocking Throughput Switching Performance
Product Family	Ubiquiti Unifi Switch
Product Type	Switch
Overview
Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Maximum Power Consumption	56W

Specifications	Ubiquiti US-48 Switch (US-48)
Dimensions	443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight With Rackmount Brackets	3.56 kg (7.85 lb) 3.65 kg (8.06 lb)
Gigabit RJ45 Ports	48
Networking Interfaces	(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports


Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 56W DC
Max. Power Consumption	56W
LEDs per Port	Speed/Link/Activity
Sound Level*	Fan Level: 0 – 0.7 dBr Fan Level: 1 – 13.5 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Rack Mount	Yes, 1U High
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	(-5 to 40° C (23 to 104° F))
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

The SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
