Ubiquiti UniFi Switch XG 6 PoE (US-XG-6POE)
$630.00
Managed, 8 x Gigabit RJ45 802.3bt PoE++ ports, 40 x Gigabit RJ45 802.3at PoE+ ports, 4 x 10G SFP+ ports, Layer 2 and Layer 3 features, 600W maximum PoE power, UniFi SmartPower RPS DC input, Near-silent cooling, 1.3″ touchscreen display, Managed with UniFi…
| PoE ports | 60W |
|---|---|
| Throughput | 88 Gbps |
| Switching capacity | 176 Gbps |
$1,075.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.

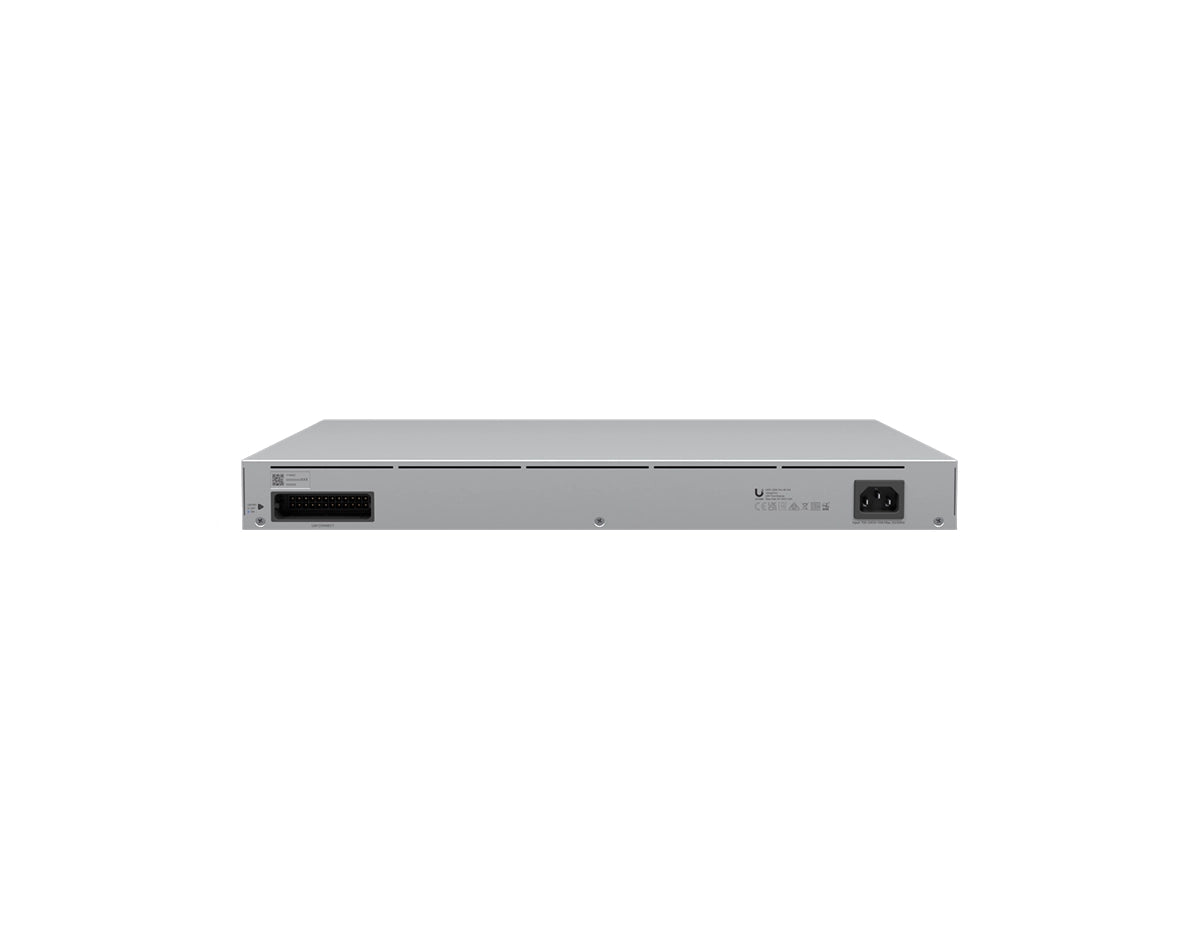

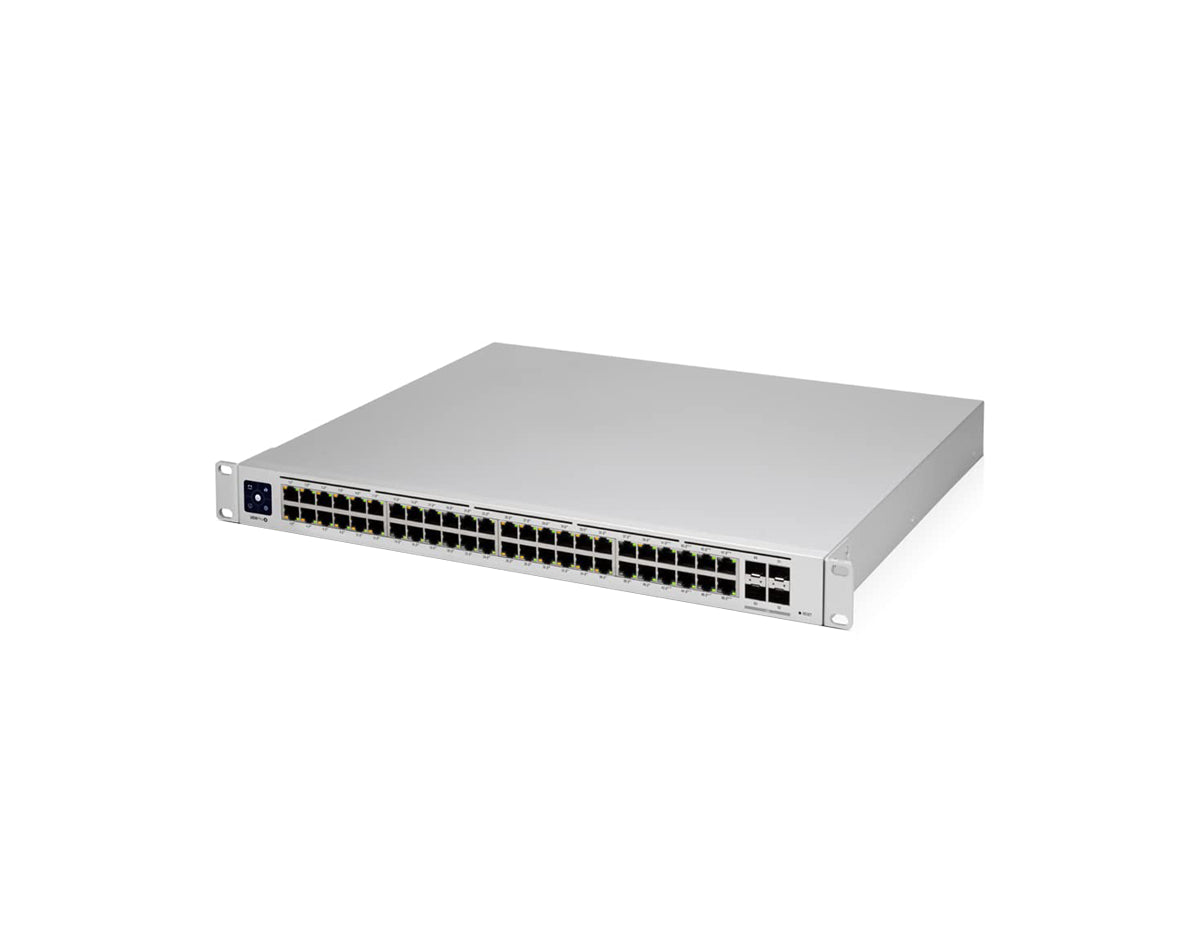

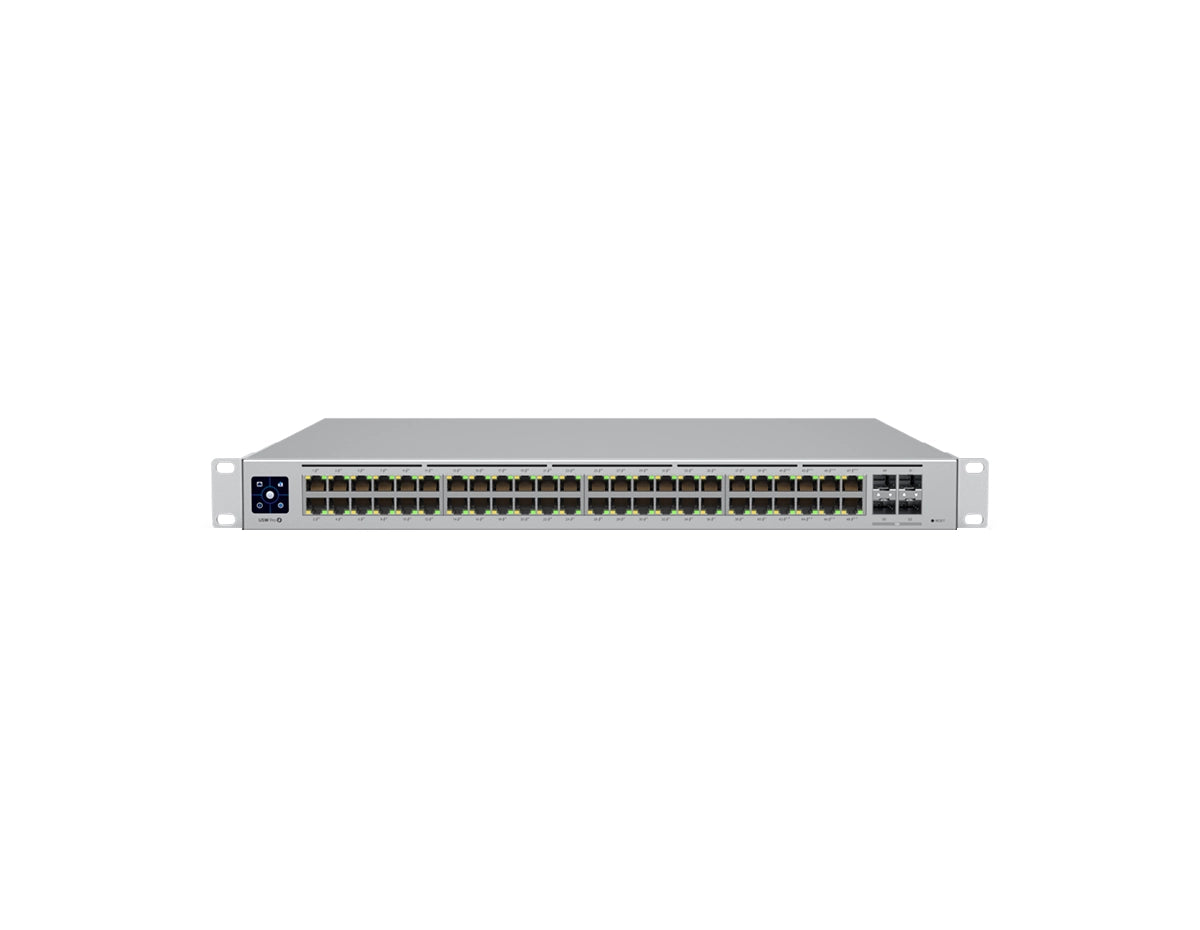

The USW-PRO-48-PoE is a fully managed Layer 3 switch with 8x 802.3bt (PoE++) and 40x 802.3at (PoE+) Gigabit Ethernet ports. It also includes 4x 10G SFP+ uplinks supporting link aggregation for increased capacity and availability. This switch offers a comprehensive set of Layer 2 functionalities and incorporates Layer 3 features such as inter-VLAN routing, static routing, and DHCP server. It is designed to be the access layer switch for any UniFi solution, providing up to 600W of nearly silent PoE power and UniFi SmartPower RPS power redundancy.
| Product Family | UniFi Switch USW Pro PoE |
|---|---|
| Product Type | Switch Professional |
| Total Non-Blocking Line Rate | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″) |
| Weight With Rackmount Brackets | 6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management | (48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Power Method Universal Input USP RPS DC Input | 100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 660W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP+ Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
|---|---|
| Operating Temperature | 5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 | POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| PoE Interfaces Ports 41-48 802.3af/at 802.3bt | 60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at/bt Mode | 50-57V |
| 25% PoE Load, 25° C Room Temperature | 0.9 dBr |
| 50% PoE Load, 25° C Room Temperature | 7.3 dBr |
| 100% PoE Load, 40° C | 22.5 dBr |
The USW-PRO-48-PoE is a fully managed Layer 3 switch with 8x 802.3bt (PoE++) and 40x 802.3at (PoE+) Gigabit Ethernet ports. It also includes 4x 10G SFP+ uplinks supporting link aggregation for increased capacity and availability. This switch offers a comprehensive set of Layer 2 functionalities and incorporates Layer 3 features such as inter-VLAN routing, static routing, and DHCP server. It is designed to be the access layer switch for any UniFi solution, providing up to 600W of nearly silent PoE power and UniFi SmartPower RPS power redundancy.
