Cisco SKU C1000-16T-2G-L

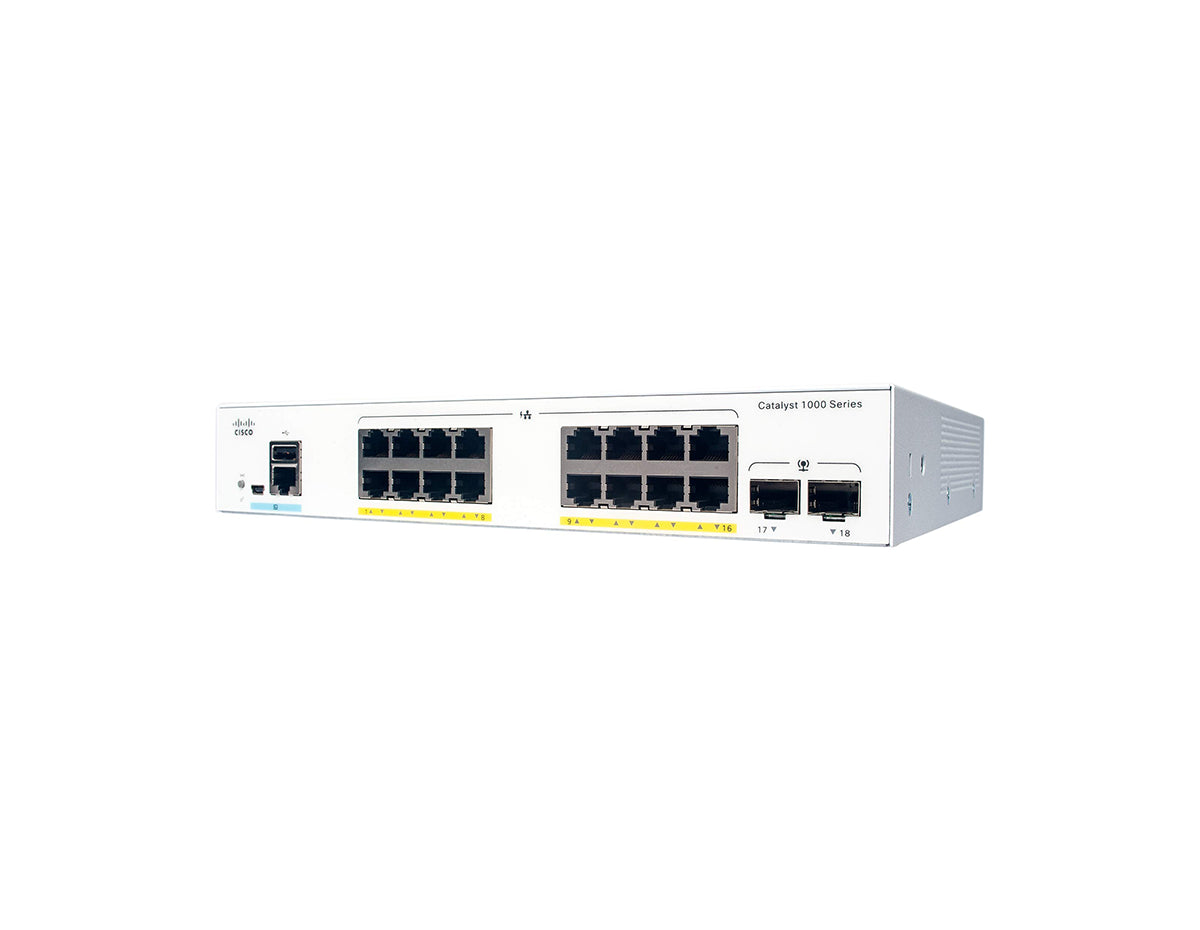

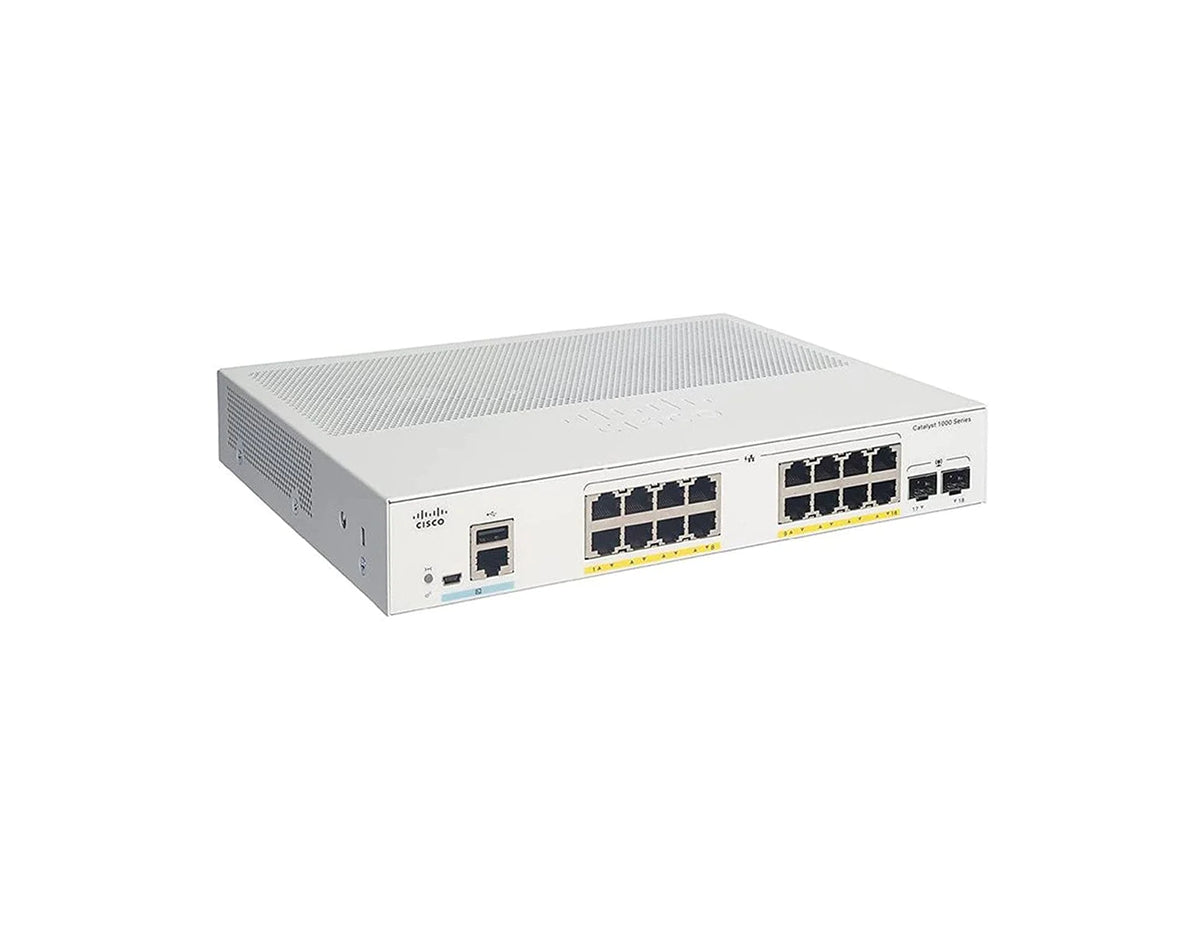

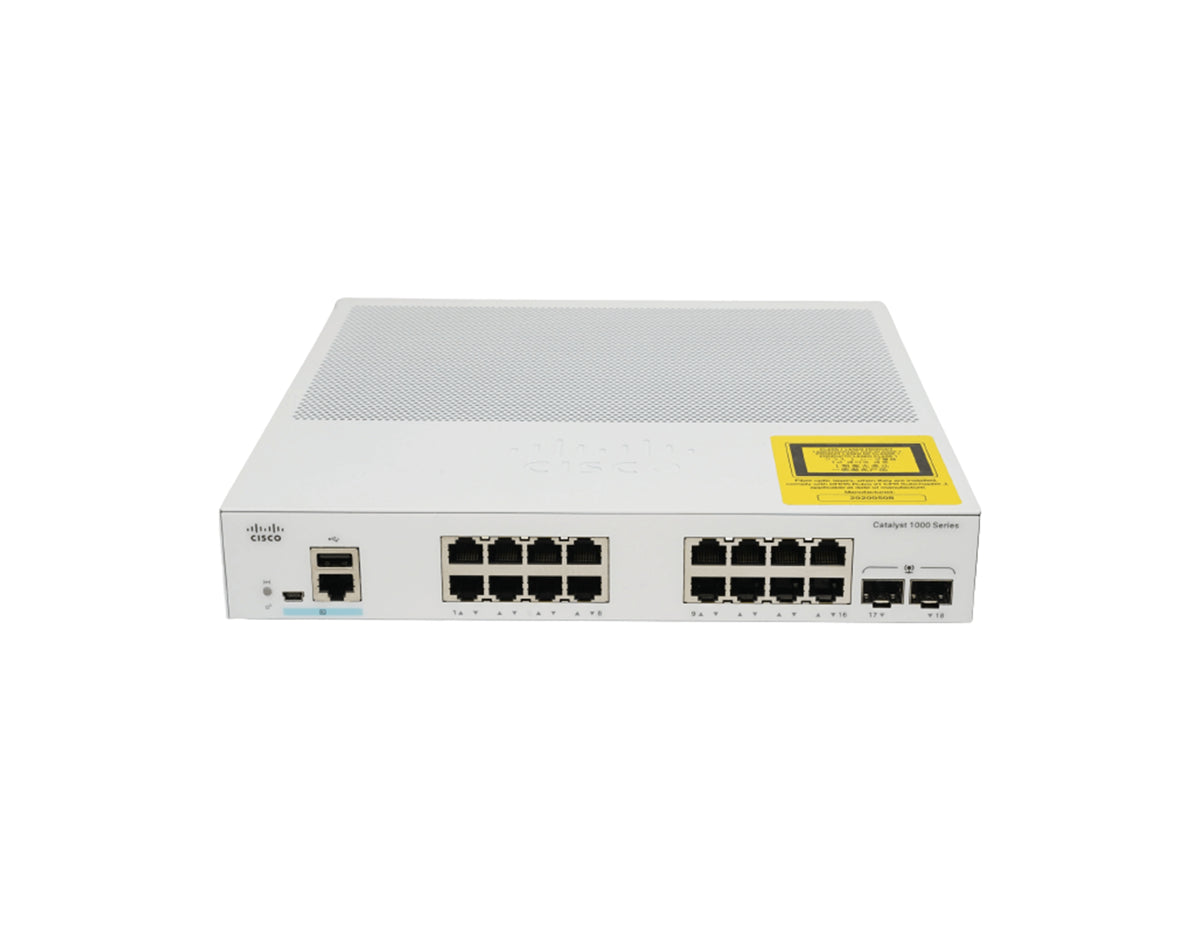

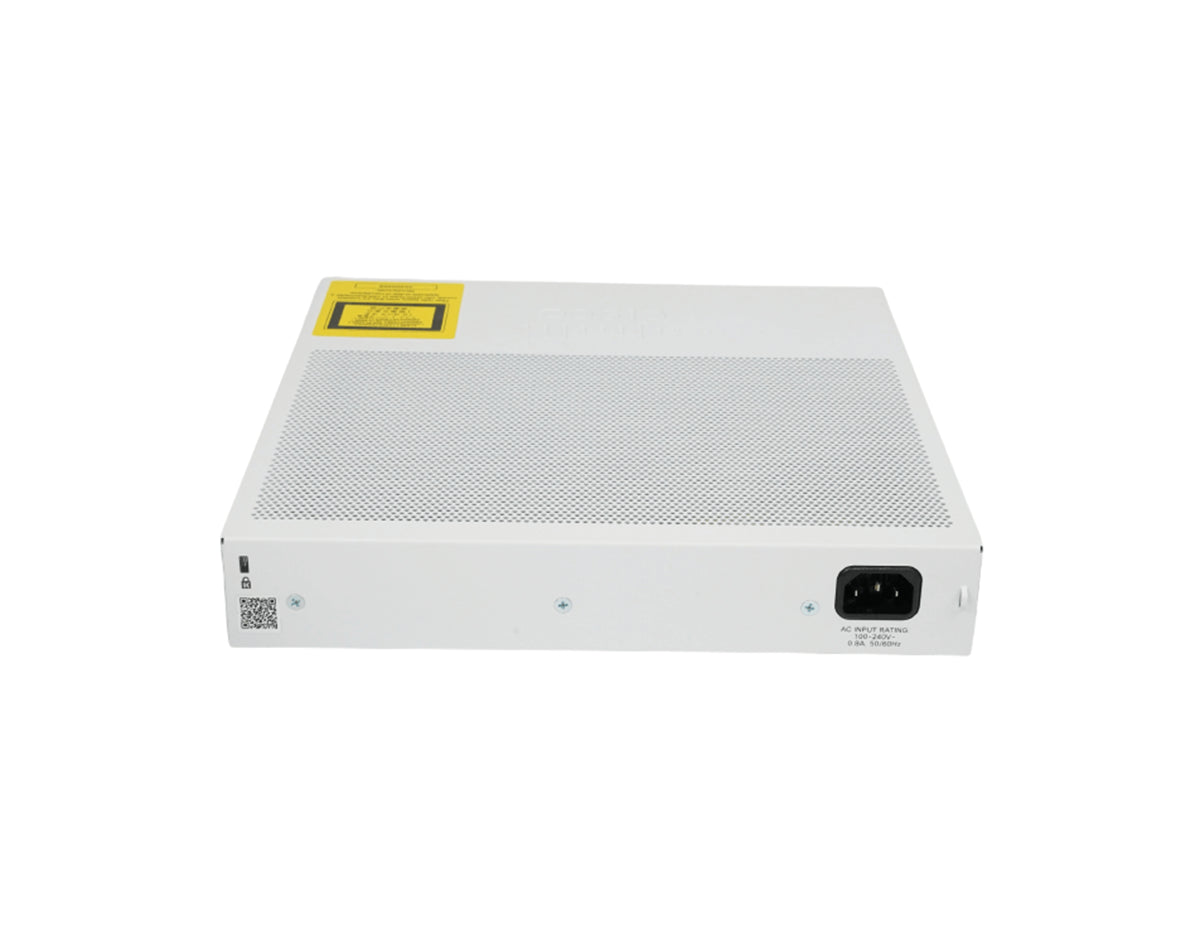

Cisco C1000-16T-2G-L Switch

Switch, Managed, 16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks

Ports	2 × 1G SFP
Throughput	18 Gbps
Switching capacity	36 Gbps

$350.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

Free US shipping on orders over $300
Manufacturer warranty
30-day returns on unopened items

Where it fits

Firewalls · 149 products · from $515

Transceivers · 50 products · from $29

Access Points · 119 products · from $29

The Cisco Catalyst C1000-16T-2G-L Switch is a reliable and flexible networking solution designed for small businesses and branch offices. Featuring 16 Gigabit Ethernet ports and 2 SFP uplinks, this switch provides high-performance connectivity to support a wide range of network devices.

Product Family	Catalyst 1000
Product Type	Ethernet Switch
Number of Ports	16
Uplink Interfaces	2 × 1G SFP
Available PoE power	No
Fanless	No
Width	17.29″
Depth	16.14″
Height	1.712″
Management	Managed (CLI/Web UI; SNMP; optional Cisco Catalyst Center)
Power Supply	Internal (auto-sensing AC)
Console Ports	1x RJ-45 (console) 1x USB mini-B (console) 1x USB-A (storage/Bluetooth console)
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash Memory	256 MB
Forwarding Bandwidth	18 Gbps
Switching Bandwidth	36 Gbps
Forwarding Rate (64-byte L3)	26.78 Mpps
MAC addresses	16000

Maximum Active VLANs	256
Operating Temperature	0 to 40 °C
Operating Altitude	Up to 10,000 ft (3,000 m)
Safety	UL 60950-1, EN 60950-1; IEC 62368-1; UL 62368-1; GB 4943.1-2011
EMC: emissions	FCC Part 15 Class A; EN55032 Class A; ICES-003 Class A; VCCI-CISPR32 Class A; EN61000-3-2; EN61000-3-3; KN32 Class A; CNS13438 Class A
EMC: immunity	EN55024 (incl. EN 61000-4-5); EN300386; KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. Government certifications	TBD
Ethernet interfaces	10BASE-T: RJ-45, 2-pair Cat 3/4/5 UTP 100BASE-TX: RJ-45, 2-pair Cat 5 UTP 1000BASE-T: RJ-45, 4-pair Cat 5 UTP 1000BASE-X (SFP uplinks)
Telnet – SSH	Yes
TACACS, TACACS+, Radius	Yes
Part Number	Description
CAB-CONSOLE-RJ45	Console Cable 6 Feet with RJ-45
CAB-CONSOLE-USB	Console Cable 6 Feet with USB Type A and mini-B Connectors
PWR-CLP	Power Cable Restraining Clip
RCKMNT-19-CMPCT	19-inch rack mount bracket for C1000, 3560-CX and 2960-CX
RCKMNT-23-CMPCT	23- and 24-inch rack mount bracket for C1000, 3560-CX and 2960-CX

Cisco Catalyst C1000-16T-2G-L Switch

Key Features

16 x Gigabit Ethernet Ports: Provides fast and reliable network connectivity for various devices in small business environments.
2 x SFP Uplinks: Offers flexible uplink options for connecting to other switches or network devices, ensuring network scalability.
Simple Management: Supports both web-based UI and Command-Line Interface (CLI) management for easy configuration and monitoring.
1RU rack-mountable design: Compact fixed-configuration platform for straightforward deployment.
Built-in security: Features such as 802.1X, BPDU Guard, and SPAN for improved network security and monitoring.

Technical Overview

Recommended for: Small businesses, branch offices, and environments requiring reliable and quiet Layer 2 switching.
Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet ports with 2 SFP (1G) uplinks.
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Management: Web-based GUI and CLI; SNMP; optional Cisco Catalyst Center.
Power: Internal auto-sensing AC
Dimensions (W x D x H): 17.29″ × 16.14″ × 1.712″
Operating Range: 0–40 °C; up to 10,000 ft altitude
