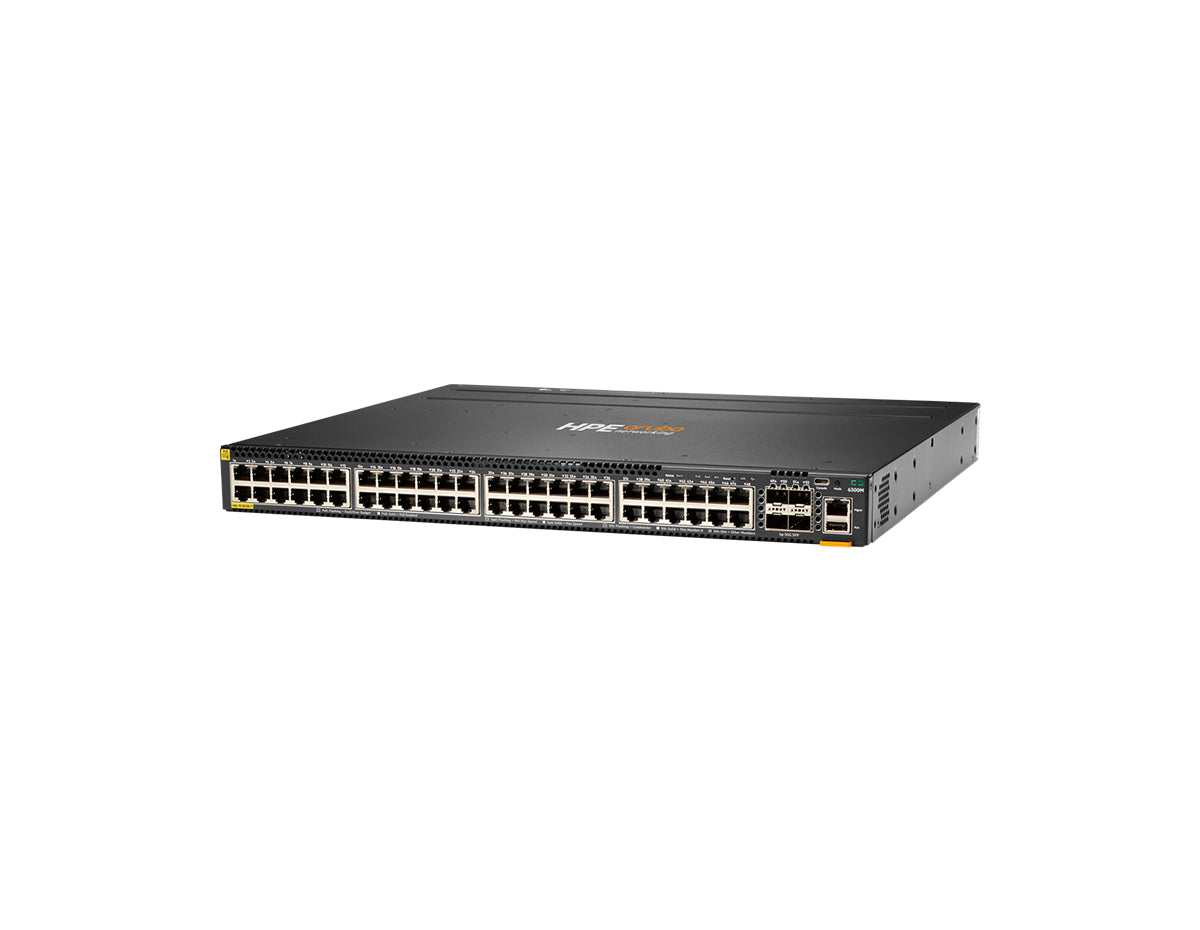

HPE Aruba Networking CX 6300 JL661A High-Performance 48-Port PoE+ Switch
HPE Aruba Networking CX 6300 JL661A High-Performance 48-Port PoE+ Switch — photo 2

HPE Aruba SKU JL661A

HPE Aruba Networking CX 6300 JL661A High-Performance 48-Port PoE+ Switch

Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x SFP/SFP+/SFP28/SFP56 uplinks (1/10/25/50G), PoE+ (up to 1440W), Layer 3

Throughput369 Gbps
Switching capacity496 Gbps

$3,425.00

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The Aruba CX 6300M JL661A is an enterprise-class Layer 3 access switch with 48 x 1GbE PoE+ and 4 flexible SFP/SFP+/SFP28/SFP56 uplinks supporting 1/10/25/50G (50G via DAC for VSF stacking). Delivering 496 Gbps switching capacity and 369 Mpps forwarding, it powers dense edge deployments with a PoE budget up to 1440W (PSU-dependent) for APs, cameras, and IP phones. Operated via Aruba Central, CLI, or SNMP, the JL661A combines performance, security (802.1X, ACLs), and scalability (VSF up to 10) in a compact 1U design.

Product FamilyCX6300 Series
Product TypeEthernet Switch
Frequency50/60 Hz
VoltageJL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V
CurrentJL670A PSU: 11A/8A JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A
Power Consumption (230 VAC)With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W
FansTwo fan-tray slots; includes 1 x JL669B fan tray (1 slot populated, 1 blank); hot-swappable
Dimensions1.73” x 17.4” x 15.2”
Weight5.16 kg (11.37 lbs)
Mounting and enclosureMounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included
CPUQuad Core ARM Cortex™ A72 @ 1.8 GHz
Memory and Flash8 GB DDR4 32 GB eMMC
Packet BufferShared Packet Buffer 8/16/32 MB (model/config dependent)
System Switching Capacity496 Gbps
System Throughput Capacity369 Gbps
Average Latency (LIFO-64-bytes packets)1Gbps: 2.28μSec 10Gbps: 1.46μSec 25Gbps: 1.90μSec 50Gbps1: 3.49μSec
Switched Virtual Interfaces (dual stack)1,024
IPv4 Host Table (ARP)49,152
IPv6 Host Table (ND)49,152
IPv4 Unicast Routes61,000
IPv6 Unicast Routes61,000
IPv4 Multicast Routes8,192
IPv6 Multicast Routes8,192
MAC Table Capacity32,768
IGMP Groups8,192
MLD Groups8,192
IPv4/IPv6/MAC ACL Entries (ingress)20,480/5,120/20,480
Stack Size10 members
Max. Stacking DistanceUp to 10 kms with long range transceivers
Stacking Bandwidth200 Gbps
Operating Temperature32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft
Primary AirflowFront and side to back
SafetyUS: UL 60950-1 2nd Ed
EmissionsUS: FCC part 15, Class A
LasersEN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only)
JL669BAruba X751 Port to Power Fan Tray
JL761AAruba 6300M Power-to-Port Fan Tray
J9583AHPE X410 1U Universal 4-post Rack Mount Kit
J9583BAruba X414 1U Universal 4-post Rack Mounting Kit
R9G48AAruba USB-A to RJ45 PC-to-Switch Cable
R8Z87AAruba USB-A to RJ45 PIN3TX-6RX Cable
R9J32AAruba USB-A to USB-C PC-to-Switch Cable
R9J33AAruba USB-C to USB-C PC-to-Switch Cable
S1H23AHPE Aruba Networking CX Switch Bluetooth Adapter
JL487AAruba 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable
JL488AAruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable
JL489AAruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable
R0M46AAruba 50G SFP56 to SFP56 0.65m DAC Cable
R0M47AAruba 50G SFP56 to SFP56 3m DAC Cable
J9281DAruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283DAruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JL085AAruba X371 12VDC 250W 100-240VAC Power Supply
JL086AAruba X372 54VDC 680W 100-240VAC Power Supply
JL087AAruba X372 54VDC 1050W 100-240VAC Power Supply
JL670AAruba X372 54VDC 1600W 100-240VAC Power Supply
JL760AAruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply
JL757AAruba 6300M 250W 36-72VDC PSU
JL758AAruba 6300M 1050W 36-72VDC
J9054DAruba 100M SFP LC FX 2km MMF XCVR (J9054D)
J4858DAruba 1G SFP LC SX 500m MMF Transceiver
J4859DAruba 1G SFP LC LX 10km SMF Transceiver
J4860DAruba 1G SFP LC LH 70km SMF Transceiver
J8177DAruba 1G SFP RJ45 T 100m Cat5e Transceiver
JL745AAruba 1G SFP LC SX 500m MMF TAA Transceiver
JL746AAruba 1G SFP LC SX 500m SMF TAA Transceiver
JL747AAruba 1G SFP LC SX 500m Cat5 TAA Transceiver
J9150DAruba 10G SFP+ LC SR 300m MMF Transceiver
J9151EAruba 10G SFP+ LC LR 10km SMF Transceiver
J9153DAruba 10G SFP+ LC ER 40km SMF Transceiver
JL563BAruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver
J9152DAruba 10G SFP+ LC LRM 220m MMF Transceiver
JL748AAruba 10G SFP+ LC SR 300m MMF TAA Transceiver
JL749AAruba 10G SFP+ LC SR 10km SMF TAA Transceiver
JL484AAruba 25G SFP28 LC SR 100m MMF Transceiver
JL485AAruba 25G SFP28 LC SR 400m MMF Transceiver
JL486AAruba 25G SFP28 LC SR 10km SMF Transceiver
R0M48AAruba 50G SFP56 LC SR 100m MMF XCVR

HPE Aruba JL661A – CX 6300M 48-port 1GbE PoE+ & 4-port SFP56 Switch

The Aruba CX 6300M JL661A is an enterprise-class Layer 3 access switch with 48 x 1GbE PoE+ and 4 flexible SFP/SFP+/SFP28/SFP56 uplinks supporting 1/10/25/50G (50G via DAC for VSF stacking). Delivering 496 Gbps switching capacity and 369 Mpps forwarding, it powers dense edge deployments with a PoE budget up to 1440W (PSU-dependent) for APs, cameras, and IP phones. Operated via Aruba Central, CLI, or SNMP, the JL661A combines performance, security (802.1X, ACLs), and scalability (VSF up to 10) in a compact 1U design.

Key Features

  • 48 x 1GbE PoE+ Ports: Provides up to 30W per port, ideal for powering connected PoE devices.
  • 4 x SFP/SFP+/SFP28/SFP56 uplink slots (1/10/25/50G; 50G via DAC): Supports 1G, 10G, 25G, and 50G uplinks for scalable network expansion.
  • Advanced Layer 3 Routing: Offers routing protocols like OSPF and BGP for enhanced traffic management.
  • Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during low activity periods.
  • Secure Access Control: Features ACLs and 802.1X authentication for secure network access.

Technical Overview

  • Recommended for: Enterprise networks, branch offices, and educational institutions.
  • Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, 4 x 1G/10/25/50G SFP56 uplink ports.
  • PoE Power Budget: up to 1440W (with appropriate PSU configuration).
  • Switching Capacity: 496 Gbps
  • Forwarding Rate: 369 Mpps
  • Management: Managed via Aruba Central, Web GUI, CLI, SNMP
  • Energy Efficiency: Compliant with IEEE 802.3az standards
