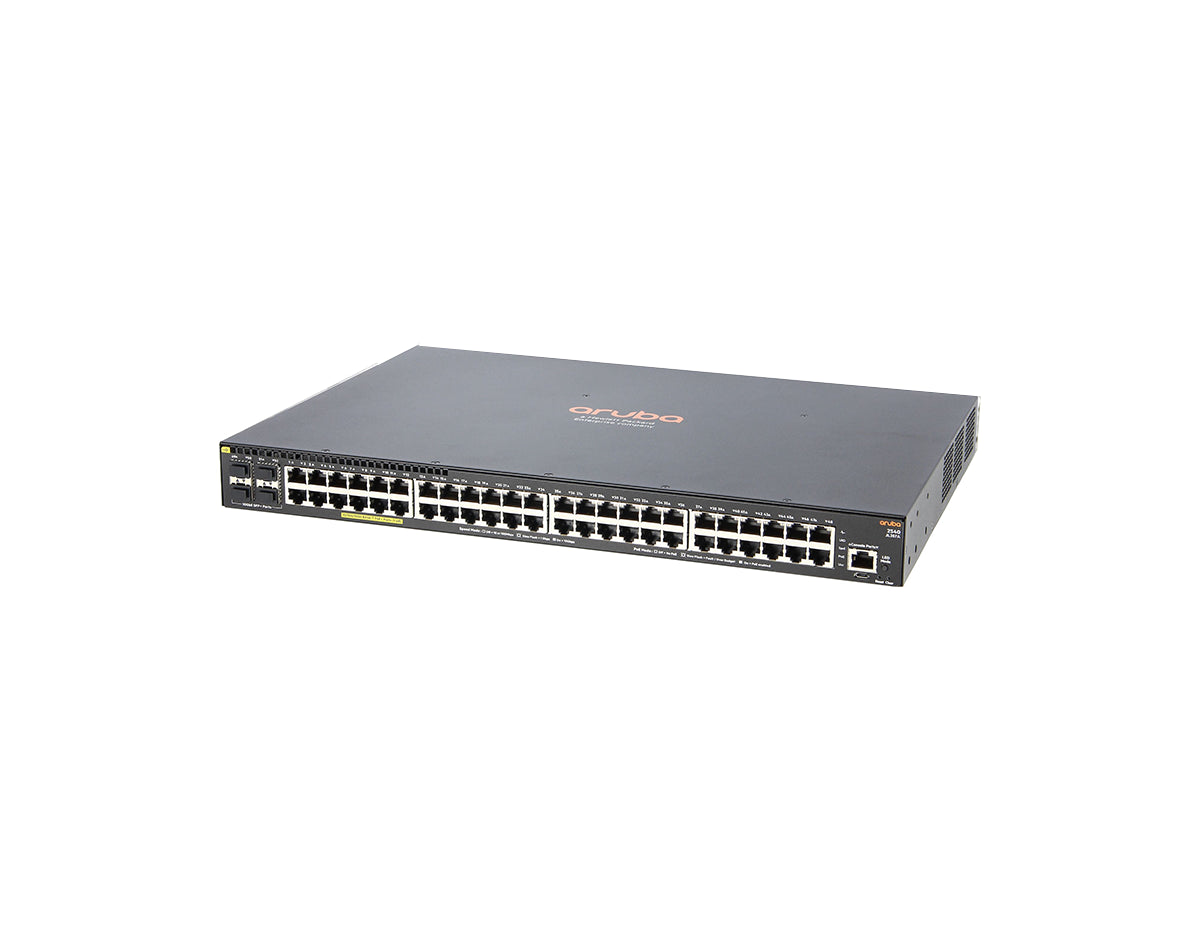

HPE Aruba Networking JL357A 2540 48G PoE+ 4SFP+ Switch
HPE Aruba Networking JL357A 2540 48G PoE+ 4SFP+ Switch — photo 2
HPE Aruba Networking JL357A 2540 48G PoE+ 4SFP+ Switch — photo 3
HPE Aruba Networking JL357A 2540 48G PoE+ 4SFP+ Switch — photo 4

HPE Aruba SKU JL357A

HPE Aruba Networking JL357A 2540 48G PoE+ 4SFP+ Switch

Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2 with static and RIP routing

Switching capacity176 Gbps

$3,021.34

Ask an engineer about this model

Add several items, then request a quote at checkout.

  • Free US shipping on orders over $300
  • Manufacturer warranty
  • 30-day returns on unopened items

The HPE Aruba 2540 48G PoE+ 4SFP+ Switch delivers secure, high-performance connectivity designed for small to medium-sized businesses and branch offices. With 48 Gigabit Ethernet ports and PoE+ support, this switch powers IP phones, cameras, and access points while offering scalable network growth through its 4 SFP+ uplinks. This switch is ideal for growing networks that require advanced management features like VLANs, QoS, and sFlow for optimized traffic control.

Product FamilyAruba 2540 Series
Product TypeSwitch
Additional ports and slots1 dual-personality (RJ-45 or USB micro-B) serial console port
Dimensions (H x W x D)4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in) (1U height)
Memory and processorDual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC
1,000 MB Latency< 3.8 µs (64-byte packets)
10 Gbps Latency< 1.6 µs (64-byte packets)
Throughputup to 112.0 Mpps
Switching capacity176 Gbps
Routing table size2,000 entries (IPv4), 1,000 entries (IPv6)
MAC address table size16,384 entries
Operating temperature0° to 45°C (32° to 113°F) up to 5,000 ft; 0° to 40°C (32° to 104°F) up to 10,000 ft
Power Supply100127/200240 VAC, 50/60 Hz
Current5.1/2.5 A
Maximum Power Rating459 W
PoE Power370 W PoE+
EmissionsVCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A; EN 55022: 2010/CISPR-22, Class A
Accessory Kit5066-2231

HPE Aruba 2540 48G PoE+ 4SFP+ Switch (JL357A)

The HPE Aruba 2540 48G PoE+ 4SFP+ Switch delivers secure, high-performance connectivity designed for small to medium-sized businesses and branch offices. With 48 Gigabit Ethernet ports and PoE+ support, this switch powers IP phones, cameras, and access points while offering scalable network growth through its 4 SFP+ uplinks. This switch is ideal for growing networks that require advanced management features like VLANs, QoS, and sFlow for optimized traffic control.

Key Features

  • 48 x Gigabit Ethernet Ports with PoE+: Delivers up to 30W per port, providing power for connected devices such as IP phones and access points.
  • 4 x SFP+ Uplink Ports: Provides high-speed fiber connectivity for scalable network expansion.
  • Layer 2 Switching: Includes VLAN support, QoS, and sFlow for effective traffic management.
  • Energy-Efficient Design: Compliant with IEEE 802.3az standards for reduced power consumption.
  • Fanless Design: Ensures quiet and efficient operation, ideal for noise-sensitive environments.

Technical Overview

  • Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
  • Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports
  • Uplink Modules: 4 x SFP+ 10GbE uplink ports
  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.9 Mpps
  • Management: Managed via Aruba Central, AirWave, CLI, Web GUI, SNMP.
  • PoE+ Power Budget: 370W
  • Energy Efficiency: Complies with IEEE 802.3az standards
