HPE Aruba Networking J9772A 2530 48G PoE+ Switch
$2,045.00
HPE Aruba Networking JL726A 6200F 48G 4SFP+ Switch
Managed, Rack-mountable, 48 x 1G ports, Fixed Uplinks (4 x SFP+), No PoE (Data Only), Layer 2
| Switching capacity | 176 Gbps |
|---|
$2,040.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The HPE Aruba 6200F 48G 4SFP+ Switch (JL726A) is a next-generation, stackable access switch built for enterprise branch offices, SMB networks, and campus edge deployments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed 1/10G SFP+ uplinks, this Layer 2 switch delivers reliable connectivity, scalability, and advanced traffic management for demanding environments.
| Product Family | CX6200 Series |
|---|---|
| Product Type | Ethernet Switch |
| Power supplies | Fixed power supply (200W) |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 2.5A/1.4A |
| Power Consumption | 68W at 230 VAC |
| Fans | Fixed fans |
| Dimensions | 1.73” x 17.4” x 12.9” |
| Weight | 4.45 kg (9.81 lbs) |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| Model Switching Capacity | 176 Gbps |
| Model Throughput Capacity | Up to 130.9 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Switched Virtual Interfaces (dual stack) | 128 |
| IPv4 Host Table (ARP) | 8,192 |
| IPv6 Host Table (ND) | 8,192 |
| IPv4 Unicast Routes | 2,048 |
| IPv6 Unicast Routes | 1,024 |
| MAC Table Capacity | 32768 |
| IGMP Groups | 1,024 |
| MLD Groups | 1,024 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5,120/1,280/5,120 |
| Stack Size | 8 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft |
| Acoustic | Sound Power, LWAd= 4.9 Bel Sound Pressure, LpAm(Bystander) = 33.0 dB |
|---|---|
| Primary Airflow | Front and side to back |
| Safety | US: UL 60950-1 2nd Ed |
| Emissions | US: FCC 47 CFR part 15B, Class A |
| Lasers | EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
| JL669B | Aruba X751 Port to Power Fan Tray |
| J9583A | HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Q73A | Aruba 6200F 12-port Cable Guard |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
| JL448A | Aruba X2C2 RJ45 to DB9 Console Cable |
| S1H23A | HPE Aruba Networking CX Switch Bluetooth Adapter |
| J9281D | Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| R9X54A | Aruba 10G LC BiDi 40km-D 1330/1270 XCVR |
| R9X55A | Aruba 10G LC BiDi 40km-U 1270/1330 XCVR |

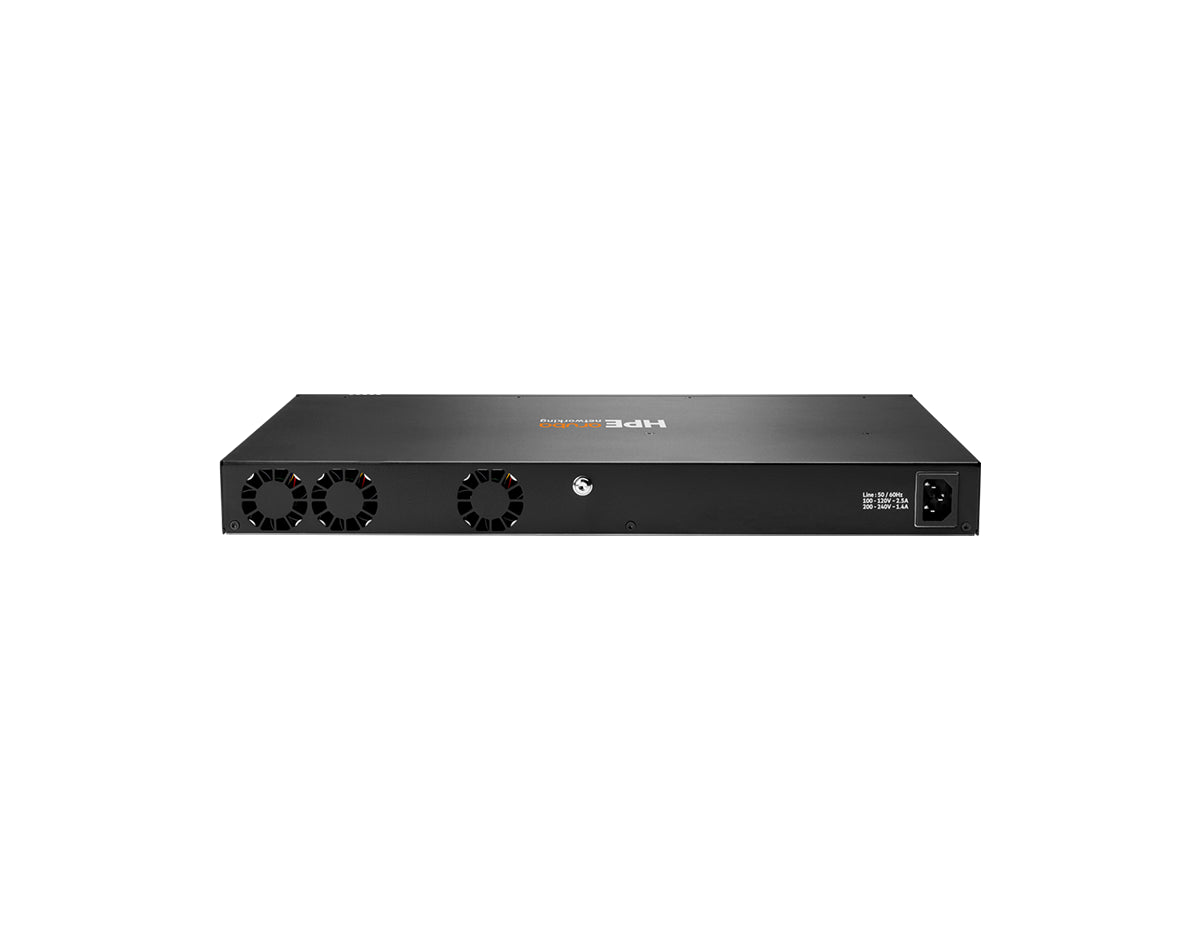

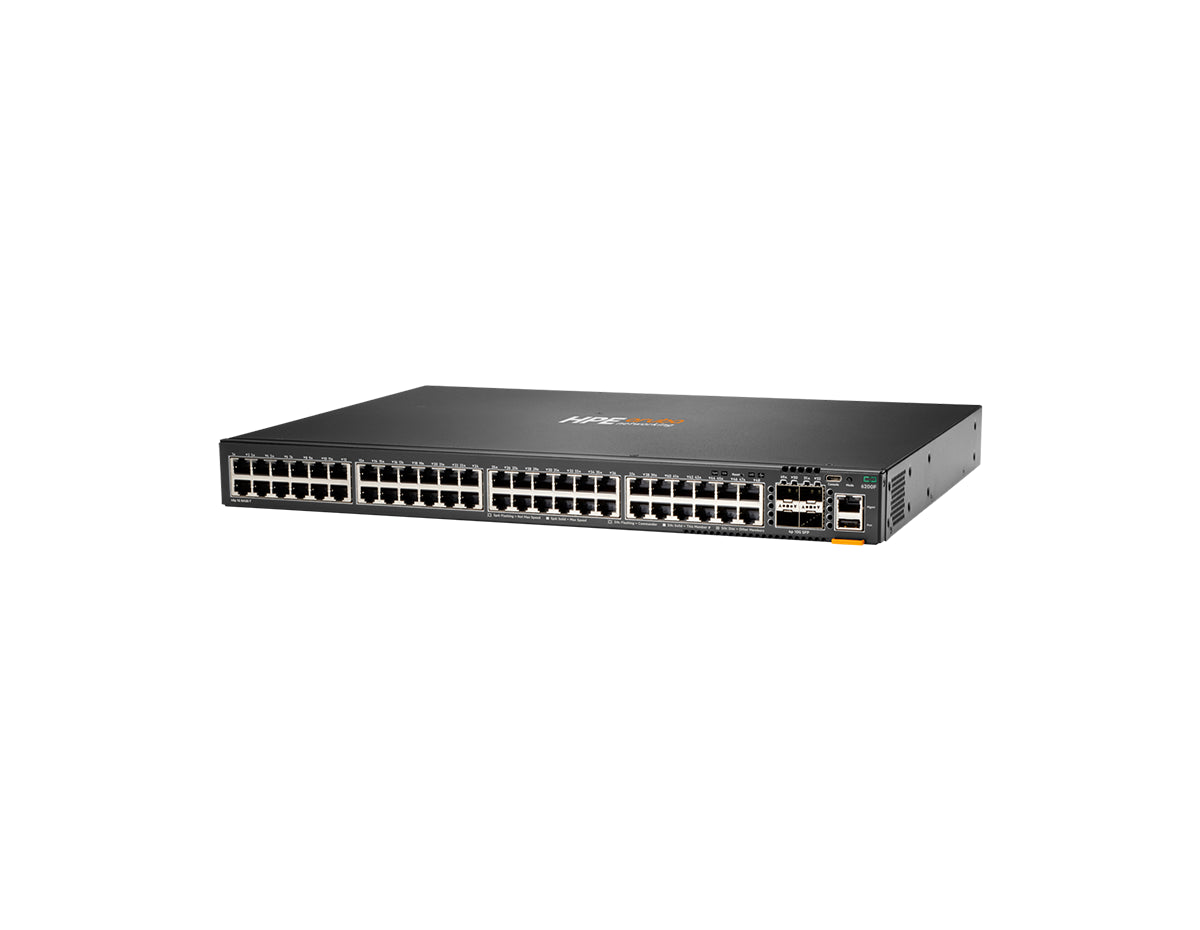

HPE Aruba 6200F 48G 4SFP+ Switch (JL726A)
The HPE Aruba 6200F 48G 4SFP+ Switch (JL726A) is a next-generation, stackable access switch built for enterprise branch offices, SMB networks, and campus edge deployments. Equipped with 48 Gigabit Ethernet ports and 4 high-speed 1/10G SFP+ uplinks, this Layer 2 switch delivers reliable connectivity, scalability, and advanced traffic management for demanding environments.
Key Features
- 48 x Gigabit Ethernet Ports: Non-PoE access ports provide cost-efficient high-speed connectivity.
- 4 x SFP+ Uplink Ports: High-performance fiber uplinks at up to 10Gbps enable seamless network expansion.
- Enterprise-Grade Layer 2 Switching: VLAN, QoS, and link aggregation ensure efficient traffic handling.
- Stackable Design: Supports up to 8 switches per stack with 176 Gbps switching capacity and 130.9 Mpps throughput.
- Simplified Management: Flexible options including Aruba Central cloud, CLI, Web GUI, and SNMP.
- Energy Efficient: IEEE 802.3az compliance reduces power consumption without sacrificing performance.
Technical Overview
- Recommended for: Enterprise branches, SMB networks, and campus edge.
- Ports: 48 x 1GbE, 4 x 1/10GbE SFP+ uplinks, 1 x USB-C console, 1 x RJ-45 console, 1 x OOBM, 1 x USB Type-A host.
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.9 Mpps
- MAC Table: 32,768 entries
- Stacking: Up to 8 members
- Power Consumption: 68W at 230 VAC
- Weight & Dimensions: 4.45 kg; 1.73″ x 17.4″ x 12.9″
