HPE Aruba Networking JL322A 2930M 48G PoE+ 1-slot Switch
$1,925.00
HPE Aruba Networking JL727A 6200F 48G Class4 PoE 4SFP+ 370W Switch
Managed, rack-mountable, 48 x 1G ports, fixed uplinks (4 x SFP+ 1/10GbE), Class 4 PoE (370W), Layer 2+
| Switching capacity | 176 Gbps |
|---|
$1,929.00
Ask an engineer about this modelAdd several items, then request a quote at checkout.
- Free US shipping on orders over $300
- Manufacturer warranty
- 30-day returns on unopened items
Where it fits
The HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A) is an ideal choice for businesses looking for reliable, high-performance network solutions. With 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch provides seamless connectivity and high-speed data transfers. The 370W PoE budget allows for the powering of various devices, including IP cameras, access points, and VoIP phones, making it a great solution for edge networking.
| Product Family | HPE Aruba Networking CX 6200 Switch Series |
|---|---|
| Product Type | Switch |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE power |
| Fans | Fixed fans |
| Dimensions | 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in) |
| Weight | 5.05 kg (11.13 lbs) |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 16 GB eMMC |
| Packet buffer | 8 MB packet buffer memory |
| Model switching capacity | 176 Gbps |
| Model throughput capacity | Up to 130.9 Mpps |
| Average latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Stack size | Up to 8 members (via 10GbE SFP+ ports) |
| Max. stacking distance | Up to 10 kms with long range transceivers |
| Switched virtual interfaces (dual stack) | 128 |
| IPv4 host table (ARP) | 8,192 |
| IPv6 host table (ND) | 8,192 |
| IPv4 unicast routes | 2,048 |
| IPv6 unicast routes | 1,024 |
| MAC table capacity | 32,768 |
| IGMP groups | 1,024 |
| Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft – derate -1°C for every 1,000 ft from 5,000 to 10,000 ft |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Non-operating temperature | 40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
| Non-operating relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
|---|---|
| Max operating altitude | Up to 10,000ft (3.048 Km) |
| Max non-operating altitude | Up to 15,000 ft (4.6 km) |
| Acoustics | Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 32.7 dB |
| Primary airflow | Front and side-to-back |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-120V/200-240V |
| Current | 7.5A/3.5A |
| Maximum heat dissipation BTU/hr and kJ/hr info needed | 260 BTU/hr (≈274 kJ/hr) |
| Power consumption (230 VAC) | Hibernation (0 rpm fan): 10W Idle: 60W 100% traffic rate: 76W |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
| Generic | CISPR 35 |
| EN | EN 55035:2017 |
| ESD | EN 61000-4-2 |
| Radiated | EN 61000-4-3 |
| EFT/Burst | EN 61000-4-4 |
| Surge | EN 61000-4-5 |
| Conducted | EN 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | EN 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included |

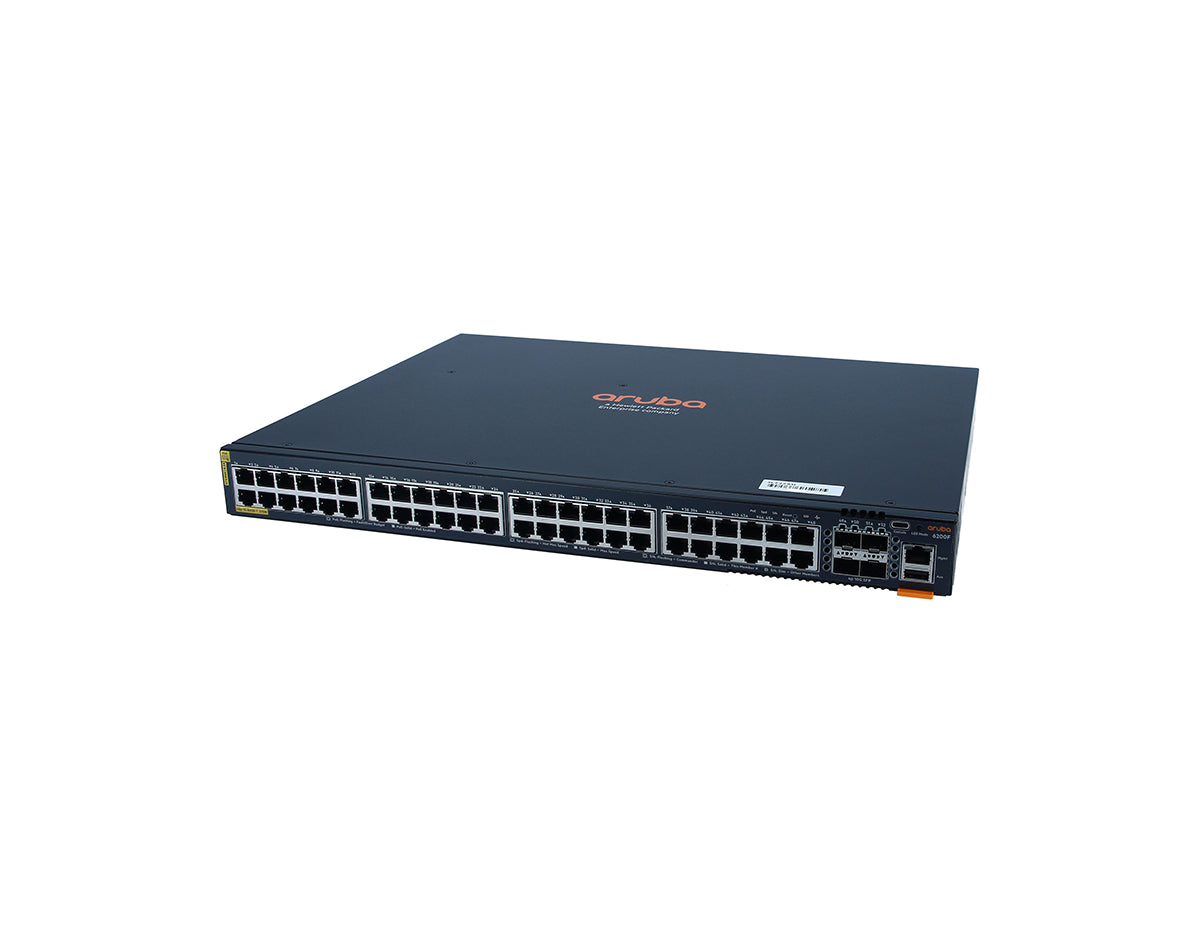

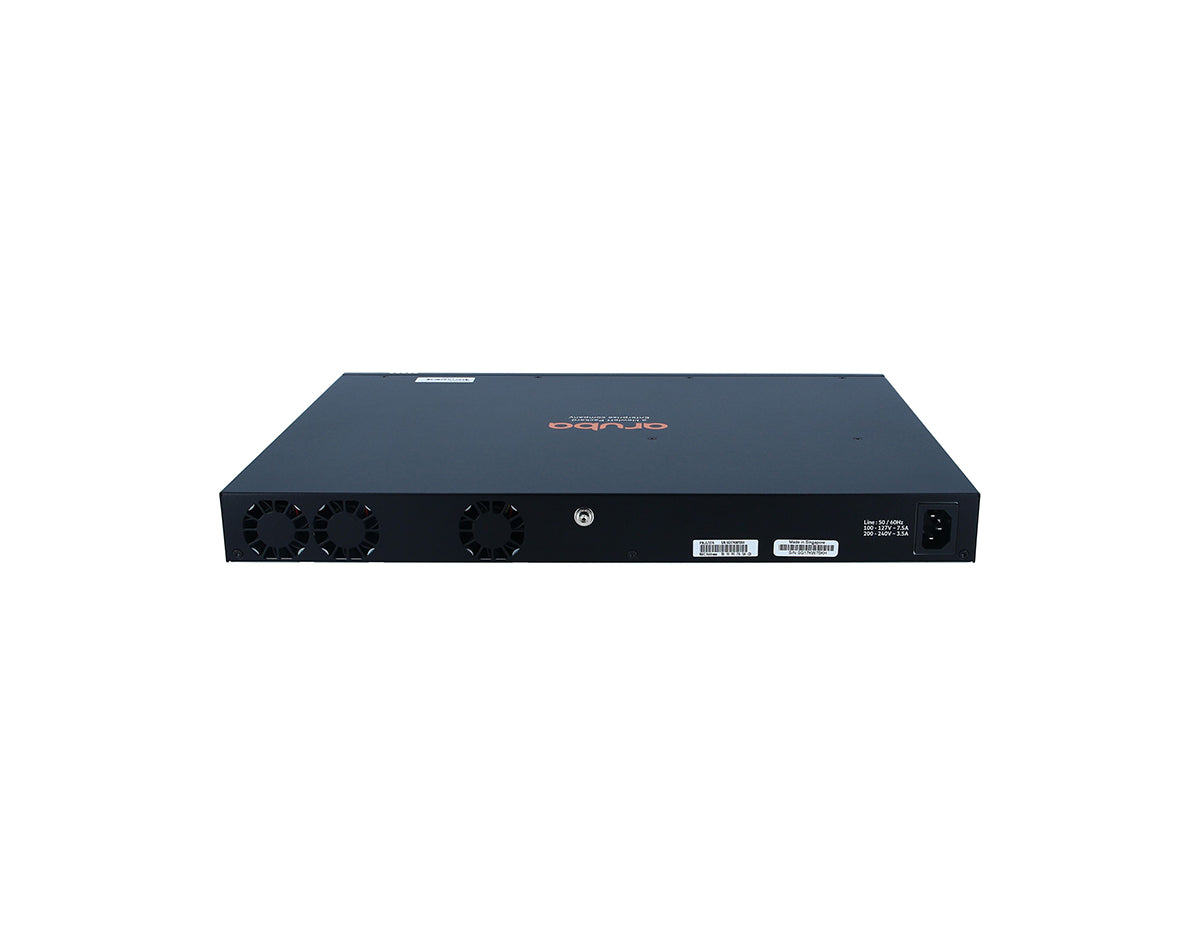

HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A)
The HPE Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727A) is an ideal choice for businesses looking for reliable, high-performance network solutions. With 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch provides seamless connectivity and high-speed data transfers. The 370W PoE budget allows for the powering of various devices, including IP cameras, access points, and VoIP phones, making it a great solution for edge networking.
Key Features
- 48 x 1GbE Class 4 PoE Ports: Supports up to 30W per port, delivering sufficient power to connected devices like IP phones and wireless access points.
- 4 x SFP+ Uplink Ports: Offers up to 10Gbps uplink speeds, ensuring reliable connectivity to the network core or other switches.
- 370W PoE Power Budget: Provides ample power for multiple PoE-enabled devices, reducing the need for external power supplies.
- Layer 2+ Features: Includes VLANs, link aggregation, and QoS for advanced traffic management and network segmentation.
- Cloud-Based Management: Managed through Aruba Central or local CLI, allowing easy setup and monitoring from anywhere.
Technical Overview
- Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
- Ports: 48 x 1GbE PoE ports, 4 x 1G/10G SFP+ uplink ports
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.9 Mpps
- PoE Power Budget: 370W to power connected PoE devices
- Layer 2+ Features: Supports VLANs, link aggregation, and QoS for efficient traffic control.
- Management: Managed via Aruba Central, CLI, and web-based GUI.
- Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption.
